Arbitrary Function / RF Signal Generator & SMU
Signal generation and precision sourcing are vital for testing and validating electronic devices. Adequiment’s Arbitrary Function Generators (AFG), RF Signal Generators, and Source Measurement Units (SMU) deliver flexible signal creation and accurate power sourcing in one solution.
Applications
Ideal for device characterization, RF testing, material research, and sensor calibration. Widely used in semiconductor, wireless communication, and academic research setups.
Features
- Wide frequency range with multiple waveform options
- High precision voltage/current sourcing and measurement
- Advanced sweep, modulation, and burst modes
- RF signal generation for wireless applications
- Seamless integration with automated test systems

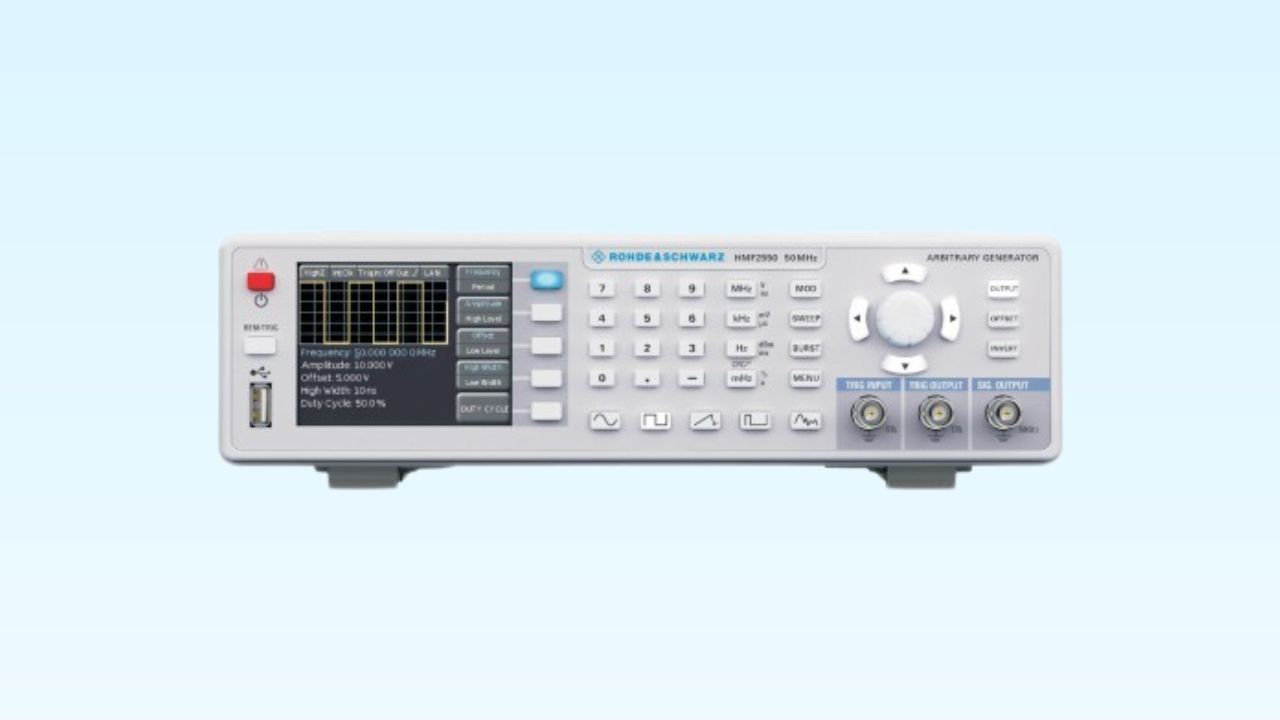

Arbitrary Function Generator
Frequency range: 10 µHz to 25/50 MHz Triangle waveforms up to 10 MHz
Output voltage: 5 mV to 10 V (Vpp) (into 50 Ω)
Waveforms: sine, square, triangle/ramp, pulse, arbitrary
Arbitrary waveform
generator: 250 Msample/s, 14 bit, 256 kpoint

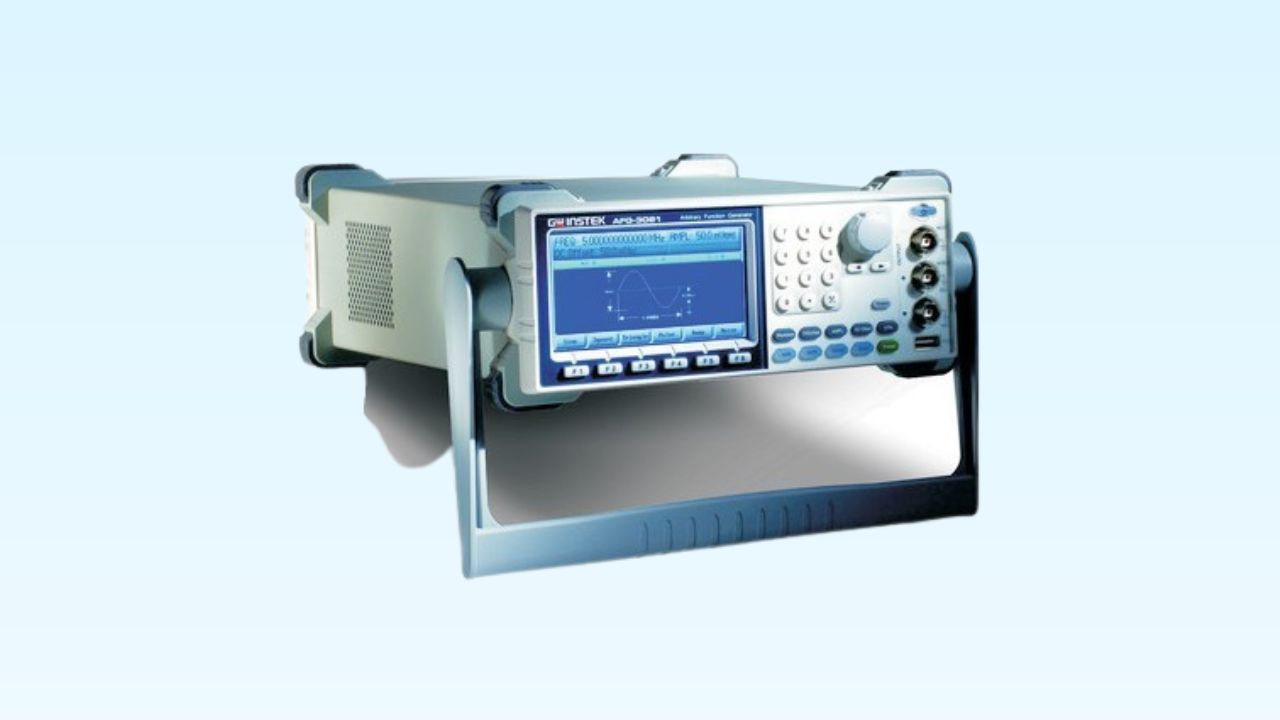

Accurate, Versalite and Affordable
Arbitrary Functional Generator
Frequency Range: 1 µHz to 80/50 MHz
Sampling Rate: 200 MSa/s Amplitude
Resolution: 16-bit
Waveform Length: Up to 1M points
Display: 4.3′ high-resolution LCD, with on-screen Waveform
Generation: Front panel operation, CSV file upload, Direct Waveform Reconstruction (DWR), Arbitrary Waveform Editing PC software
Interfaces: USB, RS-232, GPIB

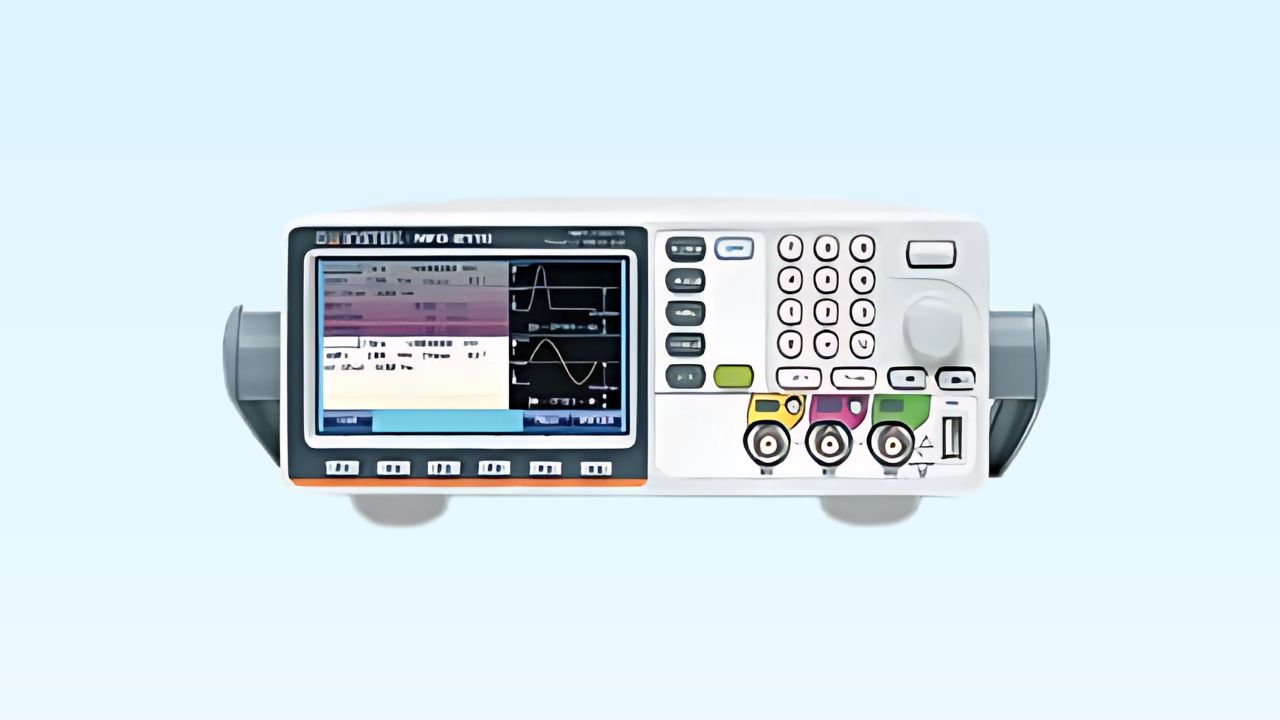

Multi-channel Function Generator
Output Channels: Up to 5
Arbitrary Channels Frequency: 1 Hz to 10/20/30/60/200 MHz
RF Channel Frequency: 160/320 MHz
Pulse Generator Frequency: 25 MHz
Power Amplifier: 100 kHz, 20 W output
Arbitrary Waveform: 250 MSa/s sample rate, 125 MHz repetition rate; Other models: 200 MSa/s, 100 MHz; 14-bit resolution, 16k points memory
Isolation: Earth ground isolation (MFG-2220HM excluded)
Frequency Counter: 150 MHz, 8-bit resolution
Modulation: AM, FM, PM, ASK, FSK, PSK, SUN PWM
Waveforms: Built-in medical and automotive (MFG-2220HM excluded)
Interfaces: USB Host/USB Device/LAN (MFG-22XX only)

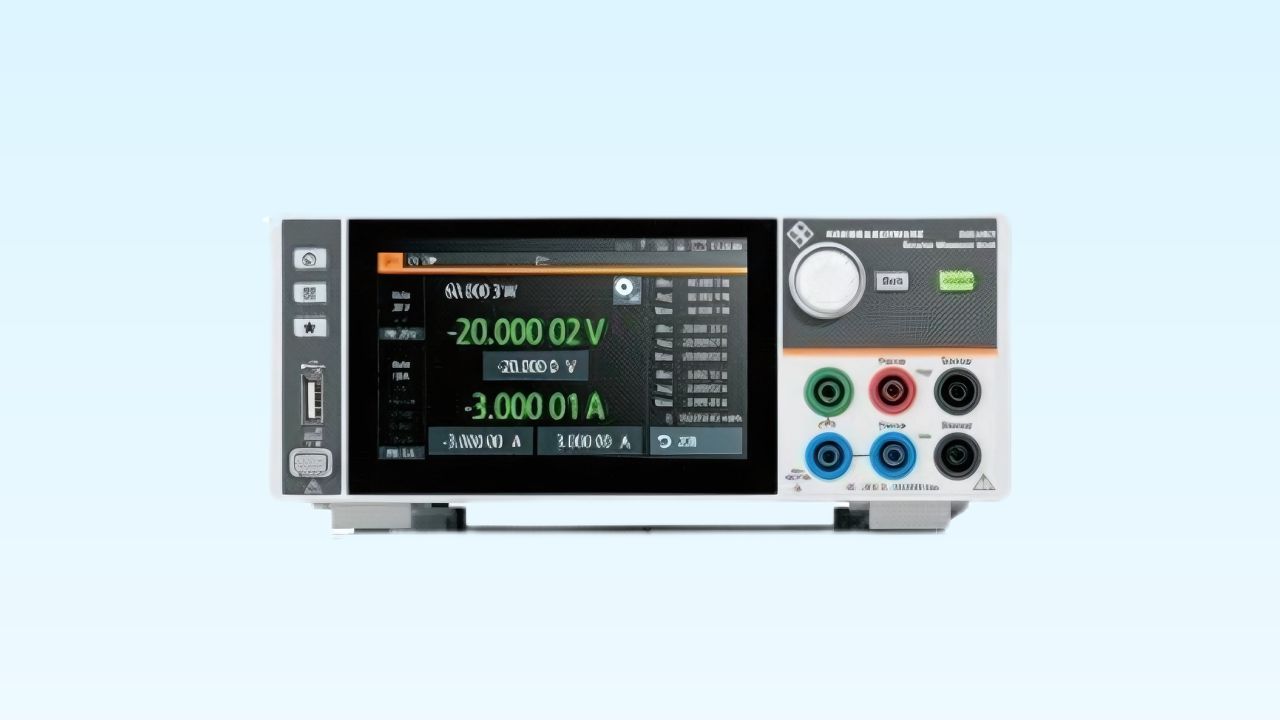

Source Measurement Unit
Two/four quadrants: operates as source and sink
High speed data acquisition (FastLog function)
Voltage priority and current priority mode
High-capacitance mode
Intuitive, price-transparent online product configurator
