DC Power Supply
DC power supplies deliver clean, stable, and adjustable direct current for testing and powering electronic devices. They combine reliability with precision, making them indispensable in labs and production facilities.
Applications
Common in R&D, embedded systems, circuit testing, and production QA. Industries like electronics, telecom, and energy use DC supplies for powering prototypes and validating designs.
Features
- Low noise and ripple output
- Wide voltage and current ranges
- Single and multi-channel models available
- Built-in safety protection features
- Remote programmability and monitoring options

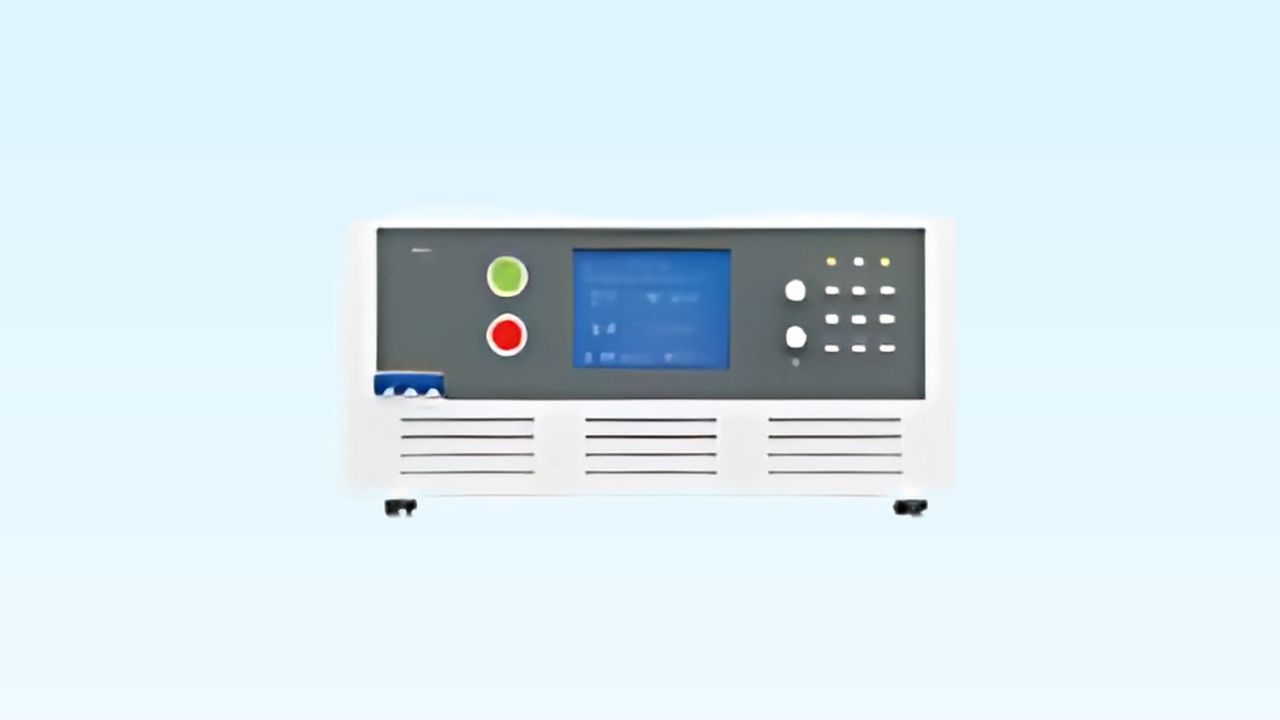

DC Regulated Power Supply
Output Range: From 35V/6kW to 630V/30kW
Work Modes: CV, CC
High Efficiency: High-frequency PWM and full-bridge conversion
Design: High power density, standard case, wide application
Display & Controls: LCD with 10 quick recall settings
Stability: Source voltage effect <0,2%, load effect <0,3%, temperature drift <0.4%
Protection: Short circuit, overcurrent, overheat, input undervoltage, reverse connection
Interfaces: Standard RS232, optional RS485; analog available

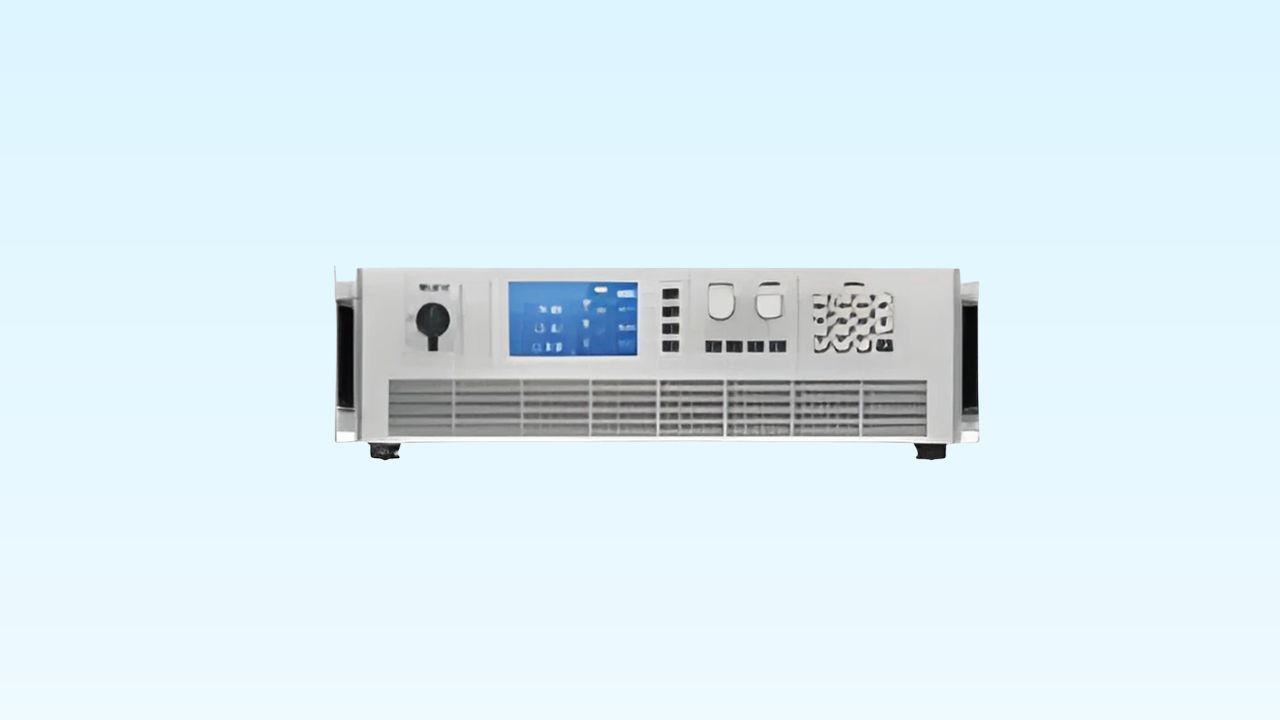

Programmable DC Power Supply
Output Range: From 35V/50A/1.5kWto 300V/10A/3KW
Display & Controls: Colorful LCD with digital keys, ideal for system integration and portabilit
Efficiency: High-frequency PWM and full-bridge conversion
Overload Capacity: Handles up to 110% current/power overload
Stability & Protection: Voltage drop compensation, complete protection for unit and load
Scalability: Supports parallel output for expansion
Programming: Customizable output waveform

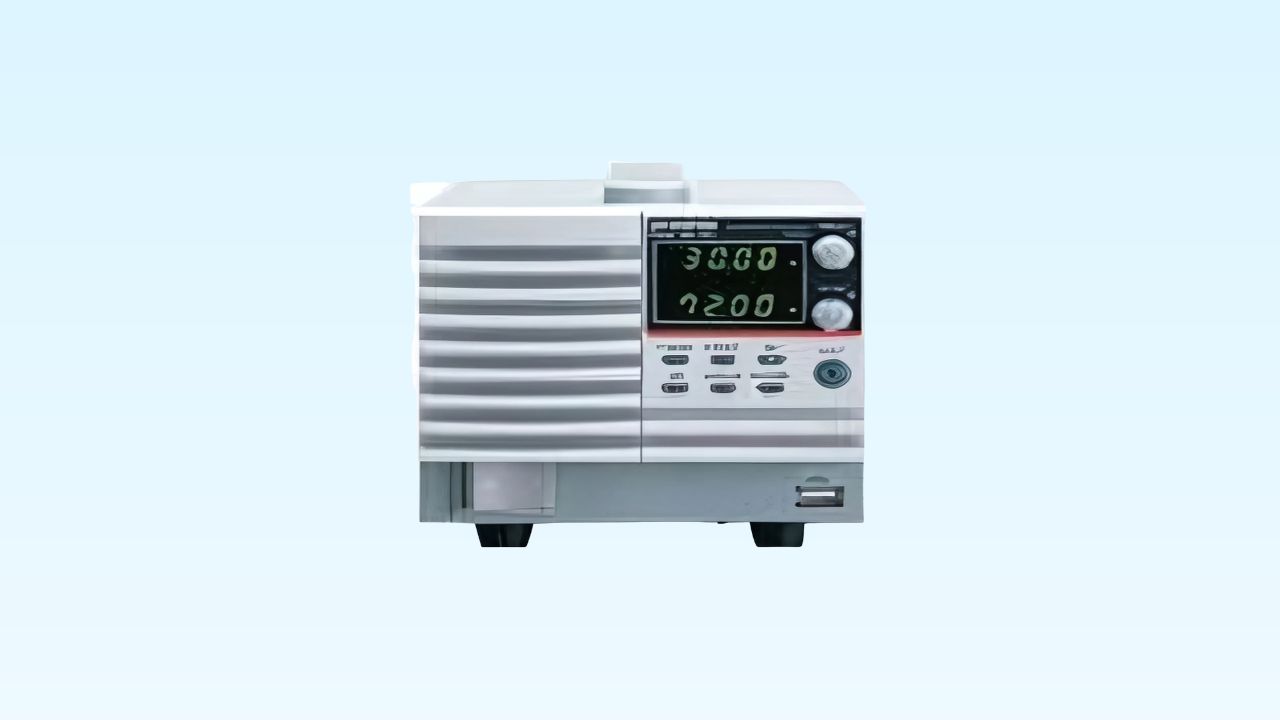

Programmable Switching D.C. Power Supply
Voltage Range: 30V to 800V, Power: 360W to 1080W
Operations: Series/Parallel operation options
High efficiency and power density
Interfaces: LAN, USB, Analog Control, optional GPIB-USB, RS232-USB

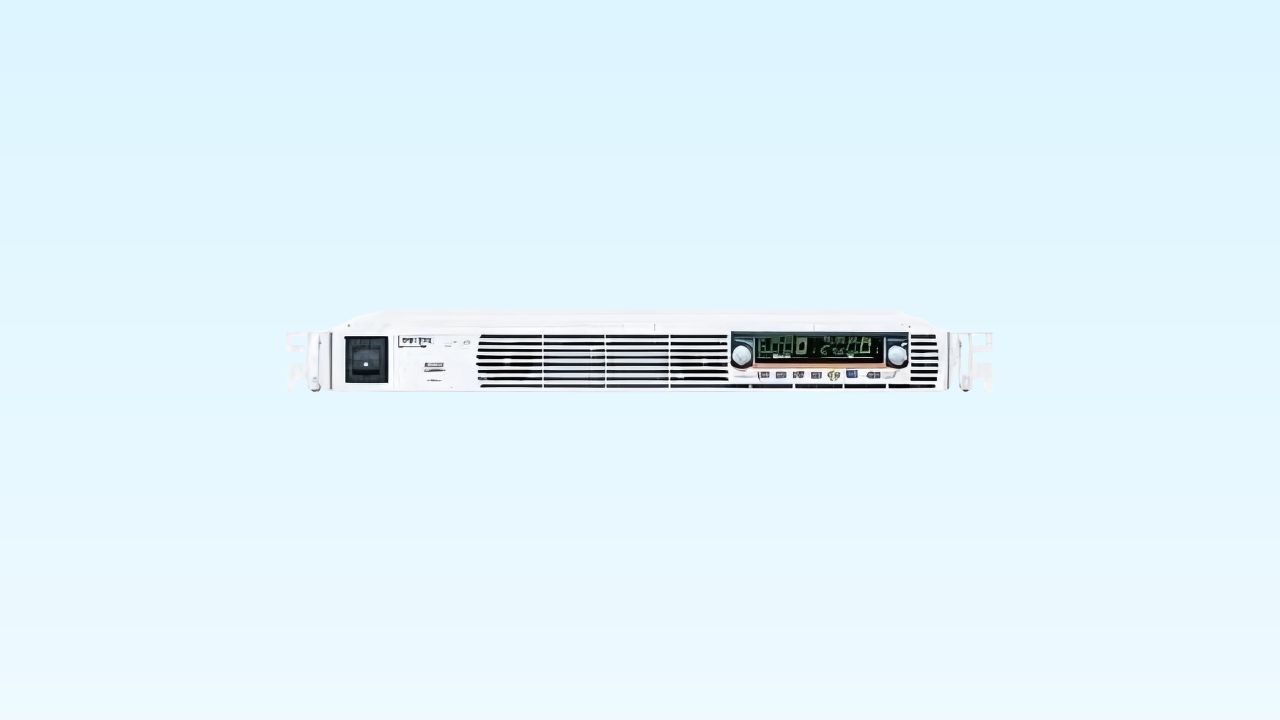

Programmable Switching D.C. Power Supply
Voltage Range: 6V to 600V
Power: 1200W to 1560W
Work modes: CV/CC priority, adjustable rise/fall time
Series/Paralled: Up to 2 units (<300V) or 4 units of the same model
High efficiency: 1U height, 19″ rack mount size
interfaces: USB, LAN, RS-232, RS-485, GPIB, Analog Control, Isolated Analog

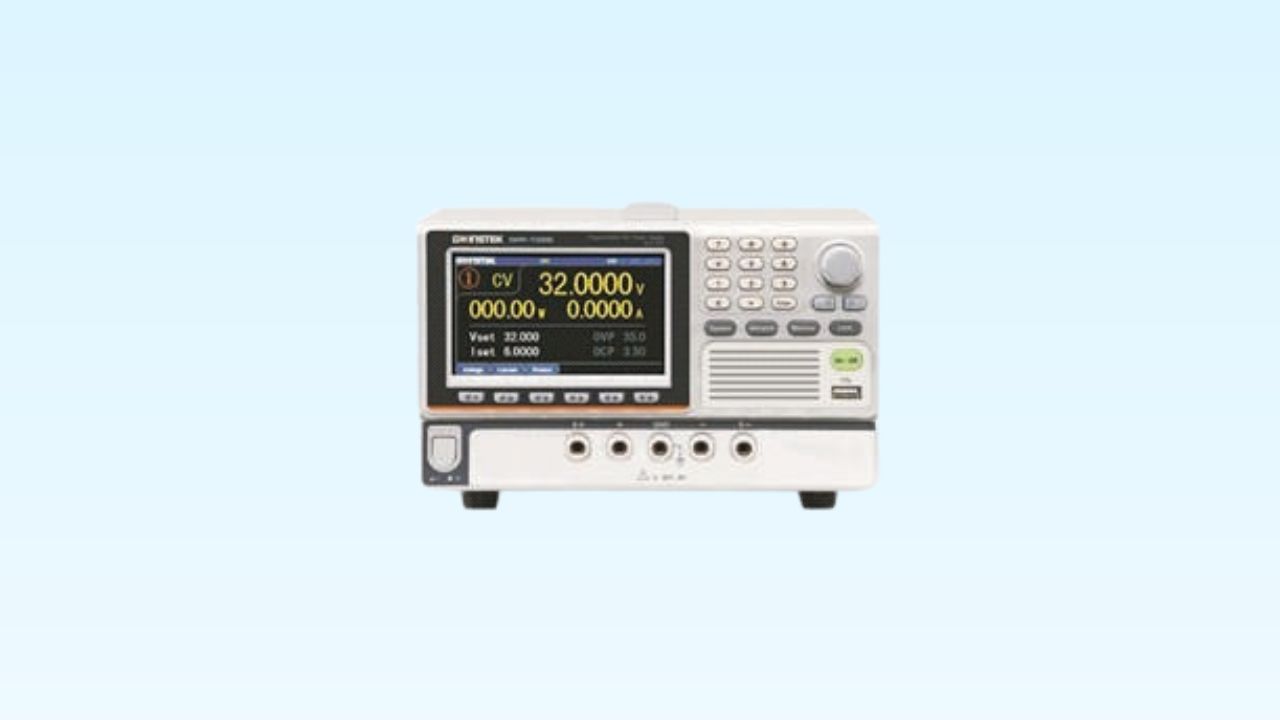

Multi-Channel Programmable D.C. Power Supply
Output: Up to 217W with up to four-channel configurations.
Display: 4.3″ TFT LCD for settings, measurements, and waveforms.
Modes: CC, CV, CR;
Resolution: 1mV/0.1mA; Readback: 0.1mV/0.1mA.
Low noise: <350uVrms/<2mArms; Fast response: <50uS.
Protection: Built in OVP, OCP, OTP; Intelligent fan control
Features: Delay, output monitoring, recorder, 8 template waveforms, 10 memory sets
Interfaces: RS-232, USB, Ext I/O; LAN, GPIB.
