Electrical Safety Tester & Motor Test Scheme
Electrical safety testers and motor test systems ensure products meet global safety standards and operate reliably. Adequiment provides solutions that combine accuracy, efficiency, and compliance.
Applications
Used for insulation testing, dielectric strength, leakage current testing, and motor performance validation in industries like appliances, automotive, and industrial machinery.
Features
- Comprehensive safety testing functions
- Automated test execution with pass/fail results
- High accuracy and repeatability
- Built-in protection features for operator safety
- Compliance with international standards
Multi-channel Electrical Safety Tester
High-Speed Testing: Supports parallel and scanning tests for AC/DC withstand voltage, insulation resistance, and grounding.
Comprehensive Detection: Includes arc detection, opery/short circull detection, and low pass filtering.
Wide Measurement Range: AC withstand voltage up to 5kV/100mA, DC up to 6kV/20mA, and insulation resistance up to 2.5kV/5062.
Interfaces: Equipped with RS232, USB, LAN, PLC, and I/O Interfaces for system Integration.
Application: Suitable for testing switching power supplies, Inverters, motors, batteries, and charging stations

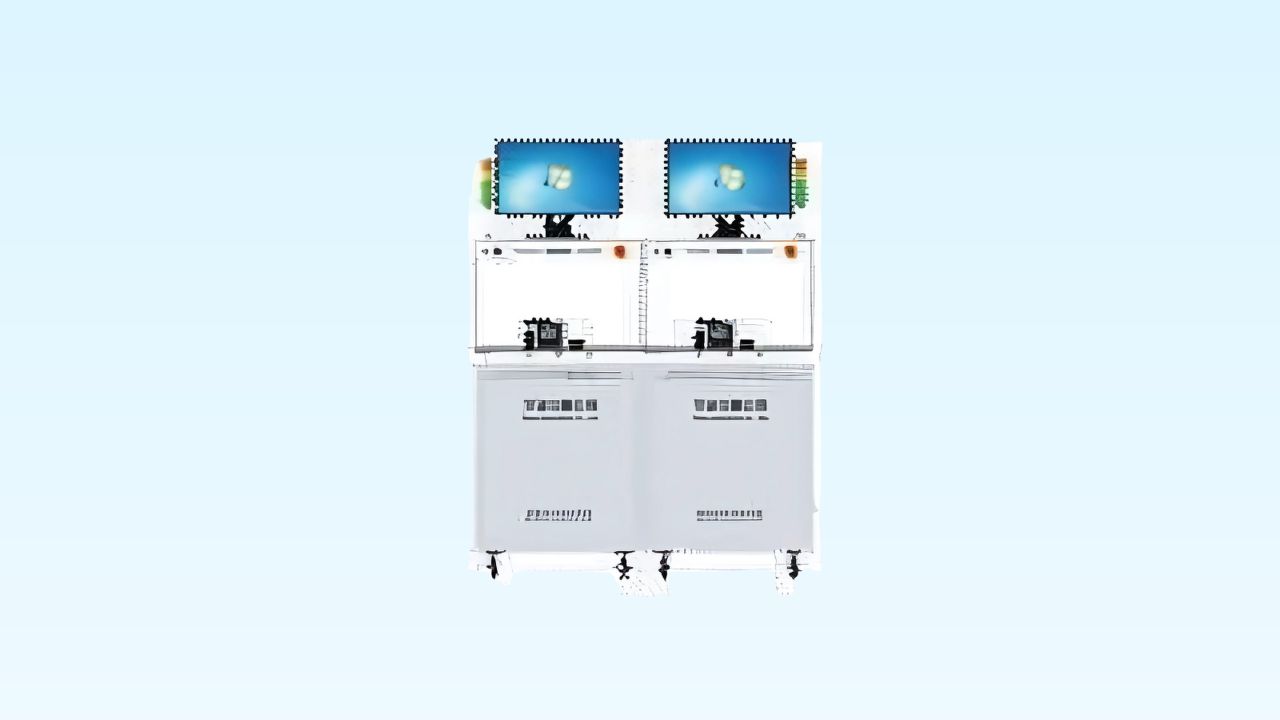

Comprehensive DC Brushless Motor Test Scheme
Broadband Signal Detection: 0.5Hz to 100KHz ultra-wideband for comprehensive testing.
High Accuracy: Voltage and current measurement accuracy up to 0.2%.
Efficiency: One-time wiring to completo all tests, including static, no bad, and Hall signal.
Modular Testing: Customizable single/mul-station and serial/parallel test systems,
Interfaces: USB, RS232, LAN, PLC simulation, TCP/IP network protocol for data interaction and control
This series is ideal for Industries like household, electric vehicles, fans, drones, and power tools.

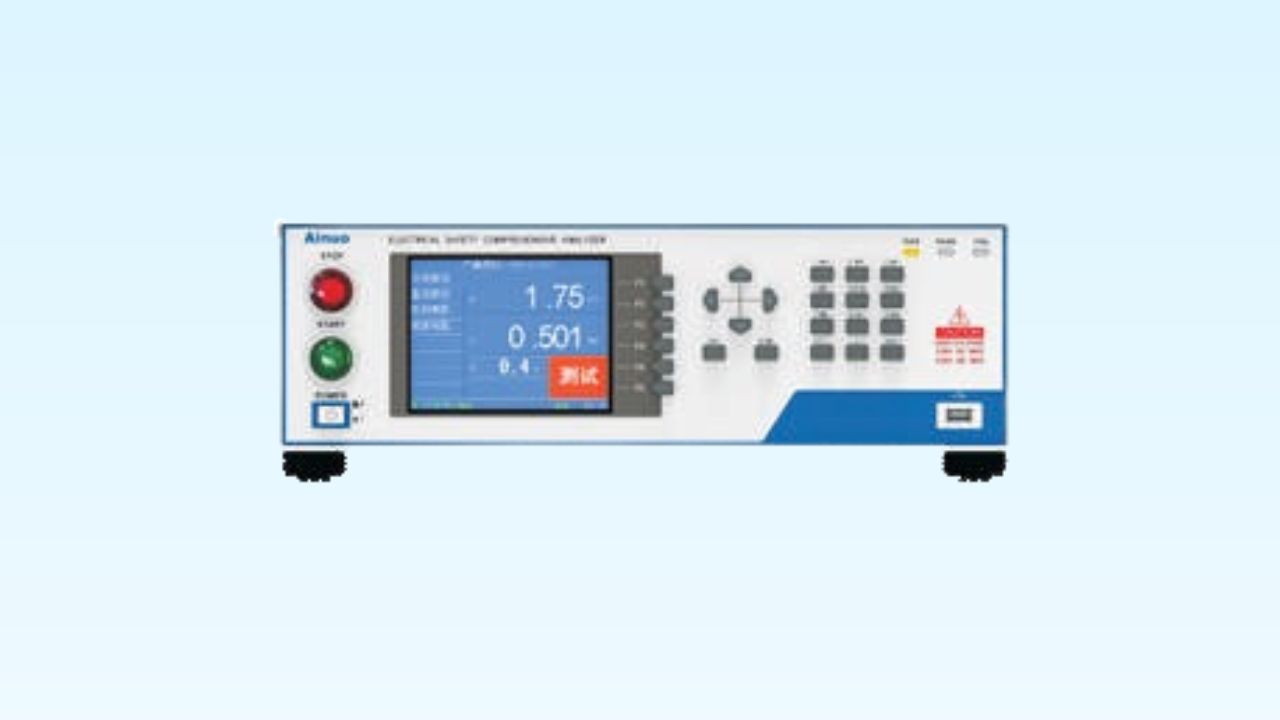

Intelligent Electrical Safety Comprehensive Analyzer
Multi-Functionality: Combines eight-in-one testing with advanced power and precision testing options.(AC WITHSTAND, DC WITHSTAND, IR, GB, LC)
High-Speed: 0,5s step testing with dual-station output and parallel test capabities.
Inteligent System: Android OS with barcode scanning, data management, and MES connectivity.
High Reliability: 1% accuracy, 30 years of expertise, and robust safety features,
