Electronic Load
Electronic loads simulate real-world operating conditions to test the performance of power sources and devices. Adequiment’s electronic loads provide precision and reliability across diverse testing needs.
Applications
Used in testing batteries, power supplies, fuel cells, and converters in industries such as automotive, renewable energy, and consumer electronics.
Features
- Modes for constant current, voltage, resistance, and power
- Wide dynamic range with fast transient response
- High-accuracy measurements with data logging
- Built-in protection for safe testing
- Compact and durable design

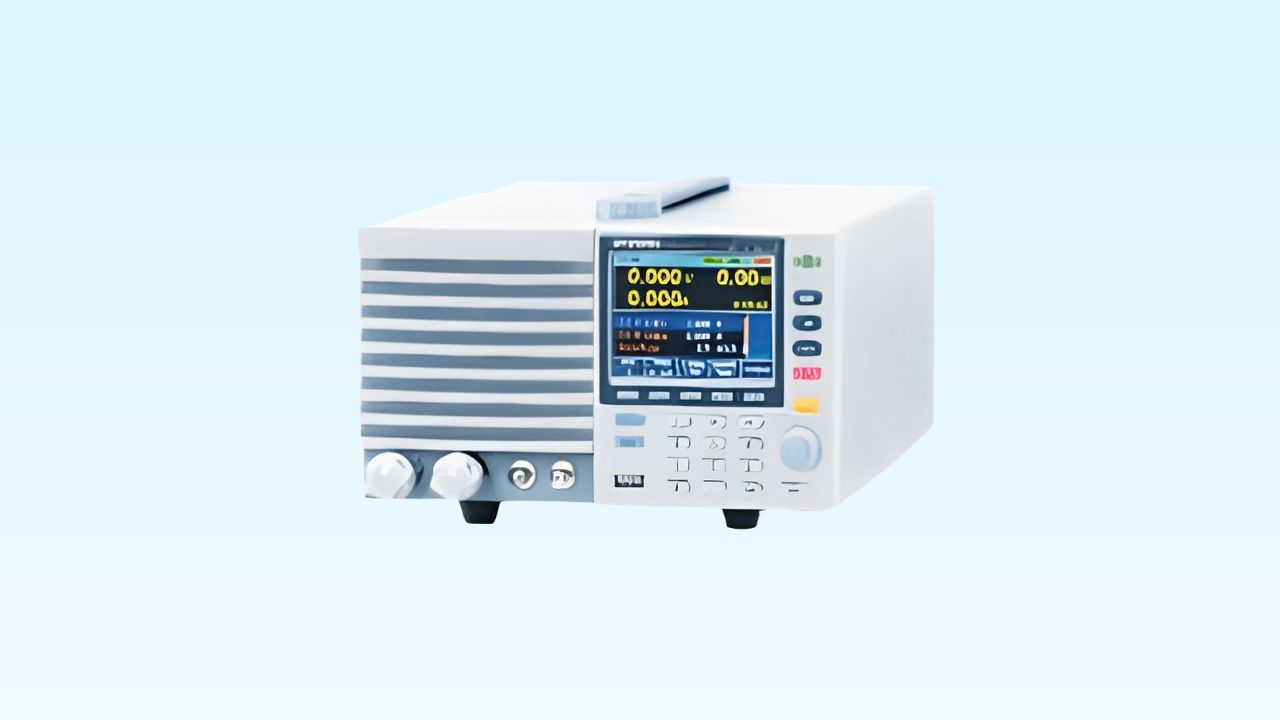

Programmable DC Electronic Load
Operating Voltage: 0150V (PEL-3000)/0800V (PEL-3000H)
Modes:CC/CV/CR/CF/CC+CV/CR+CV/CP+CV
Parallel Input Supports up to 9,450W
Slew Rate: Max. 16AA (PEL-3000)/0.844/us (PEL-3000H)
Functions: Run Program, Sequence, Dynamic (0.0166-20ketz), Soft Start (1-200ms)
Protections: Adjustable OCP, OVP, OPP, UVP
Display: 3.5″ TFT LCD
Interteces: USB, RS-232, GPB/LAN

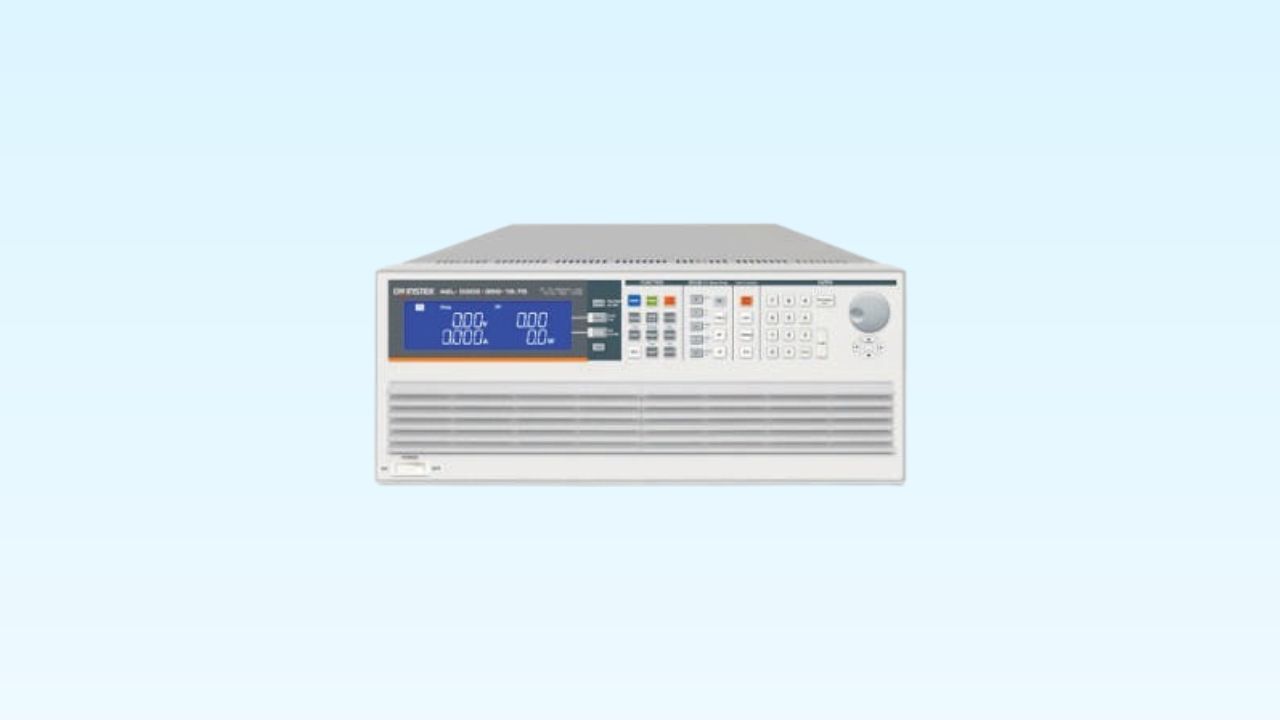

AC/DC Load
Operating Modes: CC, Linear CC, CFR, CV, CP AC Rectifier Load
Frequency Range: DC, 40-440Hz
Turbo Mode: 2x current and power for 1 second
Parallel Operation: Up to 90kW with three-phase or Yload synchronization
Angle Control: Settatile loading/unloading angle from 0 to 350
Waveform Support: SCR/TRIAC current phase modulation, 90″ trailinging nage
Optional Interfaces: GPB, RS232, USB, LAN

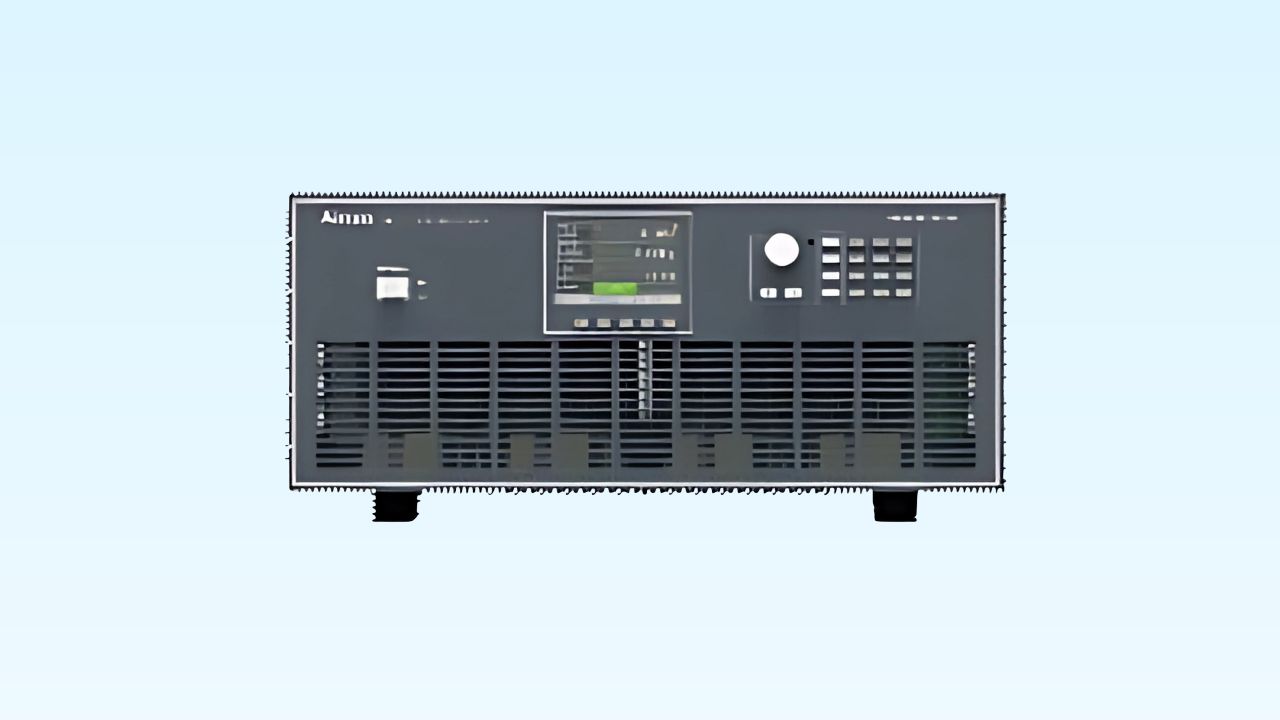

High Power DC Electronic Load
High Power Density: 40 High for BMW 130 for 24kW
Precision Measurement: Voltage 0.015%+0.015%F.S., current
Dynamic Loading: Up to 50kHz, Vpk/test
FLEX Mode: Sindlates capacitive, inductive, and compesti bads
Wide Current Range: Higher than traditional high-power loads
Dynamic Charactensties Cumetrise rate up to 96Aus
Functions: CC, CV DROP shortcut simulation
Protection: Overturent, evervoltage, over temperaturs, reverse connection:
Interfaces: RS232, optional RS485, LAN, GRIB, CAN
