EMI / EMC Test Solutions
EMI/EMC test solutions help manufacturers ensure their devices comply with international electromagnetic compatibility standards. These solutions reduce design risks and speed up certification.
Applications
Used in consumer electronics, automotive, aerospace, and industrial equipment to meet global compliance requirements.
Features
- Pre-compliance and full compliance testing options
- Wide frequency coverage for EMI/EMC analysis
- Robust shielding and precise measurement accuracy
- Automated test routines and reporting
- Scalable solutions for labs and production setups

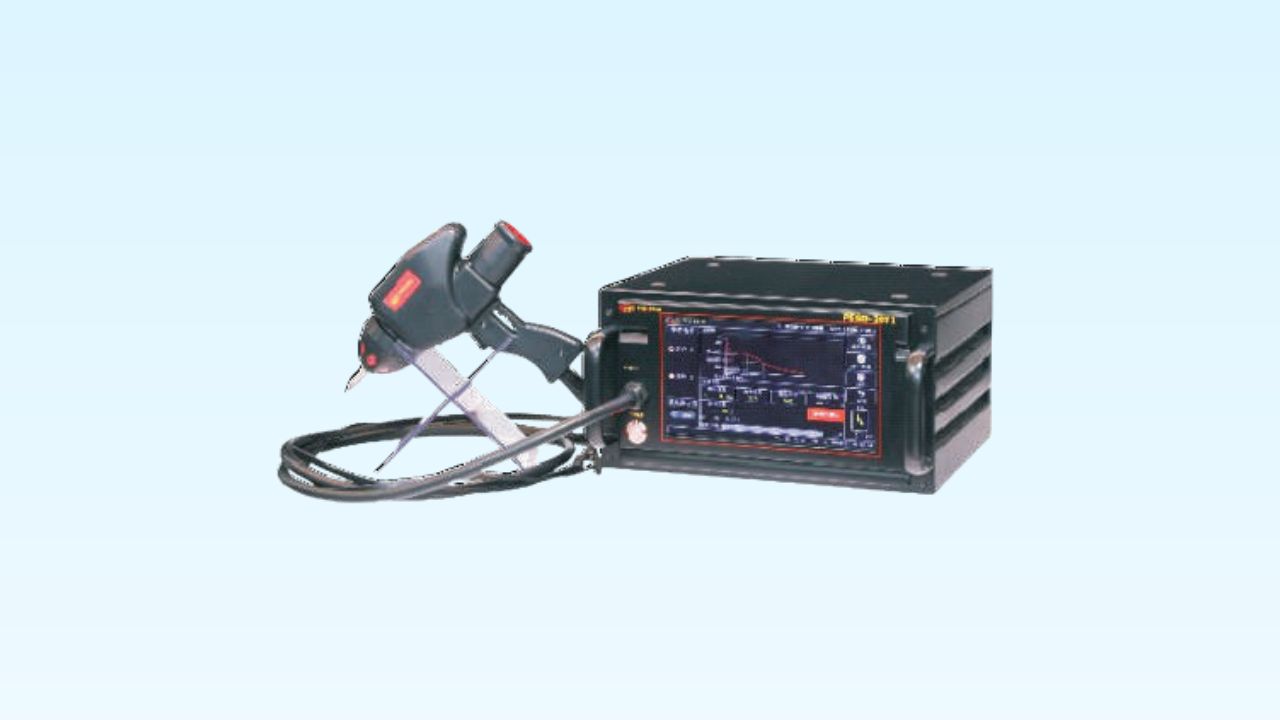

ESD Simulator
High Voltage Capability: Test volkage up to 30KV
Display: 10,1-Inch Color Touch Screen.
Discharge Options: Supports both contact and air discharge (200V-30V).
Polarity Conversion: Arbitrary conversion of positive and negative polsity.
Customizable Modes: Custom, boost, and standard modes available,
Intrigent Detection: Air discharge fallure detection and temperatumomidi y monitoring.
Compliance: Meets standards such as IEC61000-4-2, 15010605, ENG1326, and more
Interfaces: RJ45 and RS232 kiterfaces for remota operadon.
Durable and Replaceable Components: Replaceable discharge modules and electrodes.

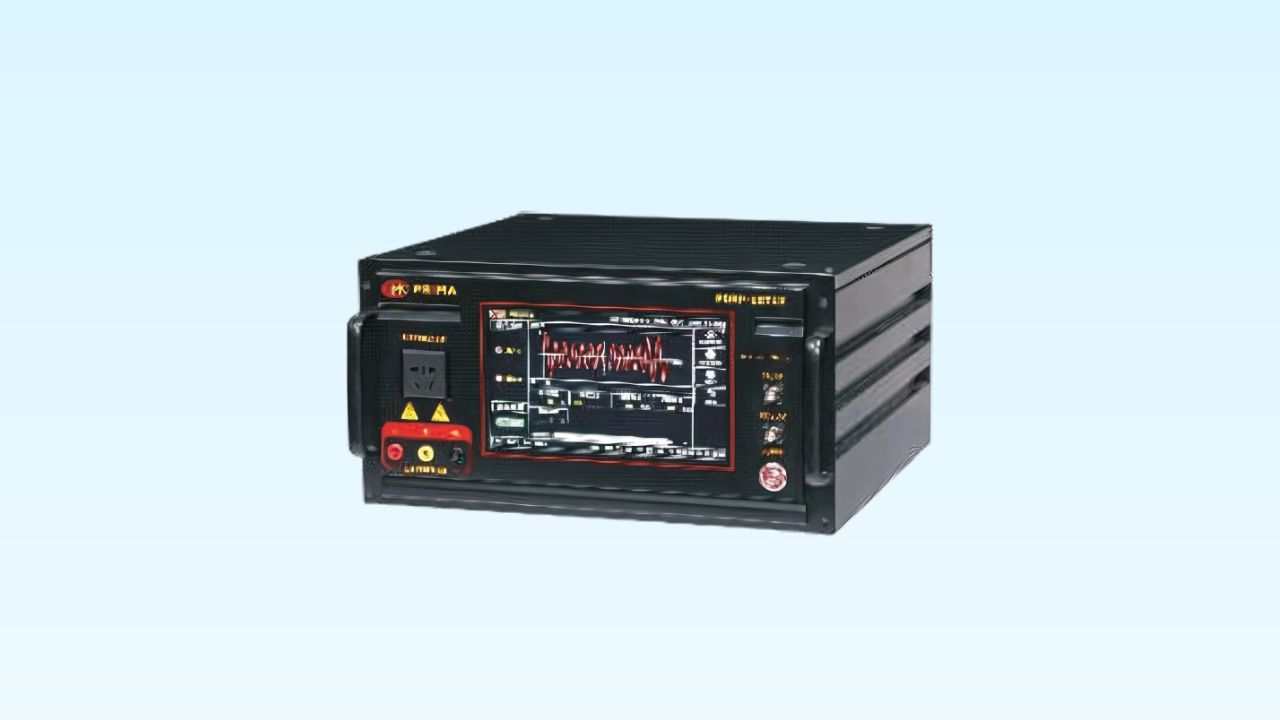

EFT/Burst Simulator
Output range: 200V~5000V10%
Designed for electrical last transiente immunity testing up to 5kv
10,1-inch color touch screen with arbitrary polulty conversion,
Supports custom, boost, and standard modes.
Complies with GB/T 176264 and IEC 61000-4-4 standards
Built-in thermometer, humidity meter, and phase synchronization for precision testing.

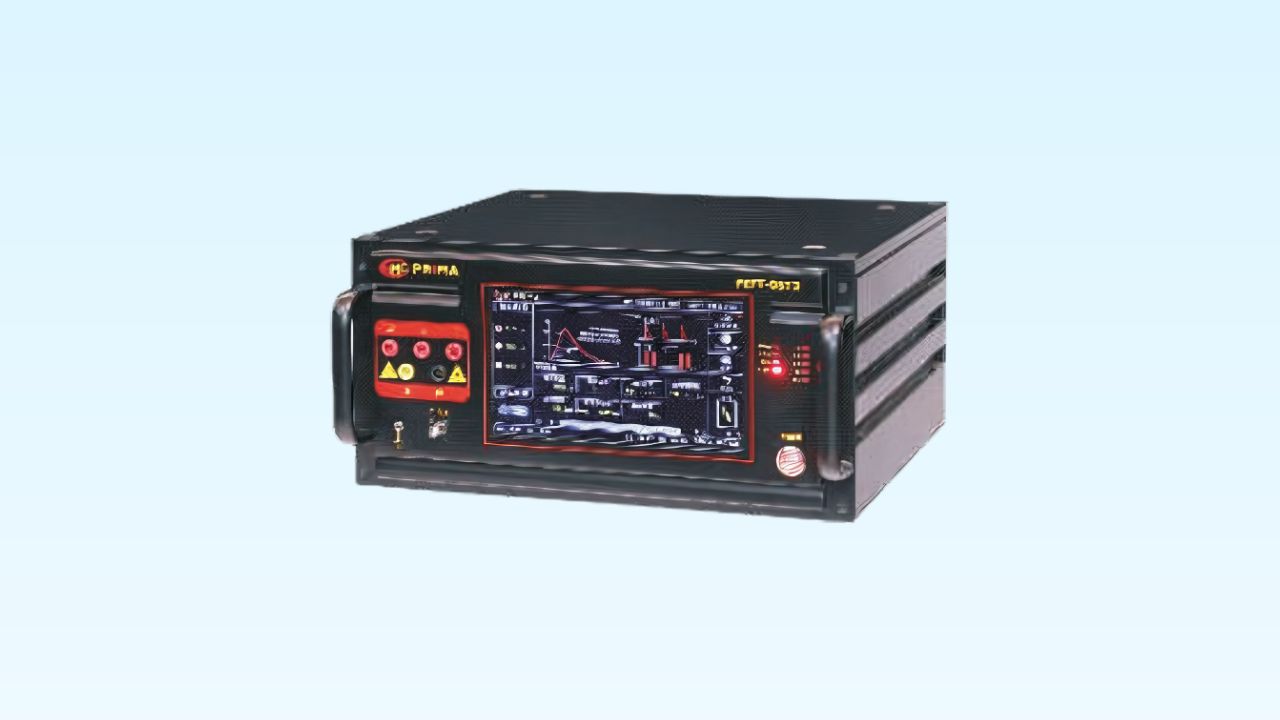

AC/DC Voltage Dips Simulator
Designed for testing AC/DC voltage diep resistance with customizat settings.
10,1-Inch color touch screen
supports positive/negative polarity conversion.
Drop Injection phase angle can be set asynchronously or from 0 to 360.
Voltage change range from 0% to 120% with resolution of 0.5 cycles.
Bulit-in U45 Interface for optional remote control

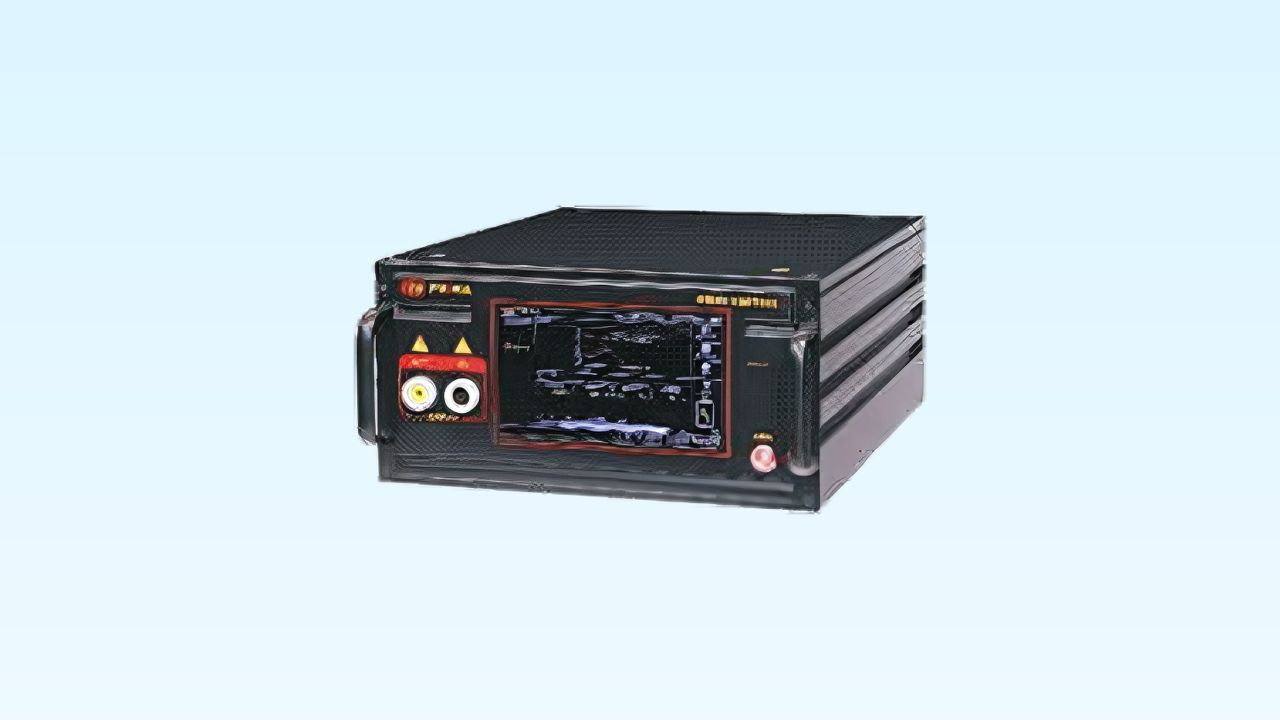

Ringwave Simulator
Ring wave voltage range: 200V to 6600V with austan bostrange.
10,1-hch color touch screen with positivethegative pokuty conversion,
Phase setting: Asynchronous or synclostus from 0 to 359,
Bulit-in RJ45 hterface for optional remote control.
Compliant with EC61000-4-12, C255-22-1 0816917,1 standards

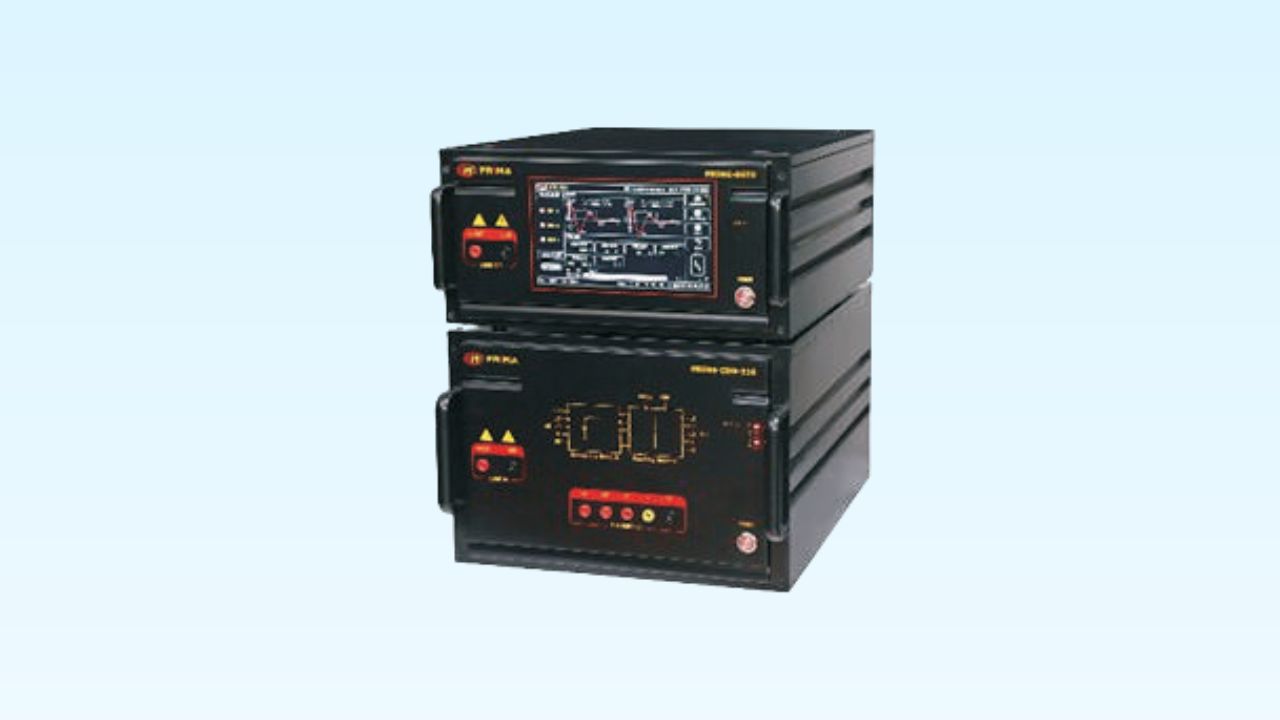

Impulse Voltage Generator
Impulse voltage range: 0.3kV to 20.0kV with 0.1V resolullan
10.1-inch color touch screen with positive/negative polarity conversion.
Rise time: 1.2µs ±30%; Duration: 50µs ±20%,
Built-in RJ45 and RS232 Interfaces for optional remote control
Compliant with IEC60255-5, GB14711, GB/T17626,5, IEC61000-4-5, and IEC/EN 61010 standards.

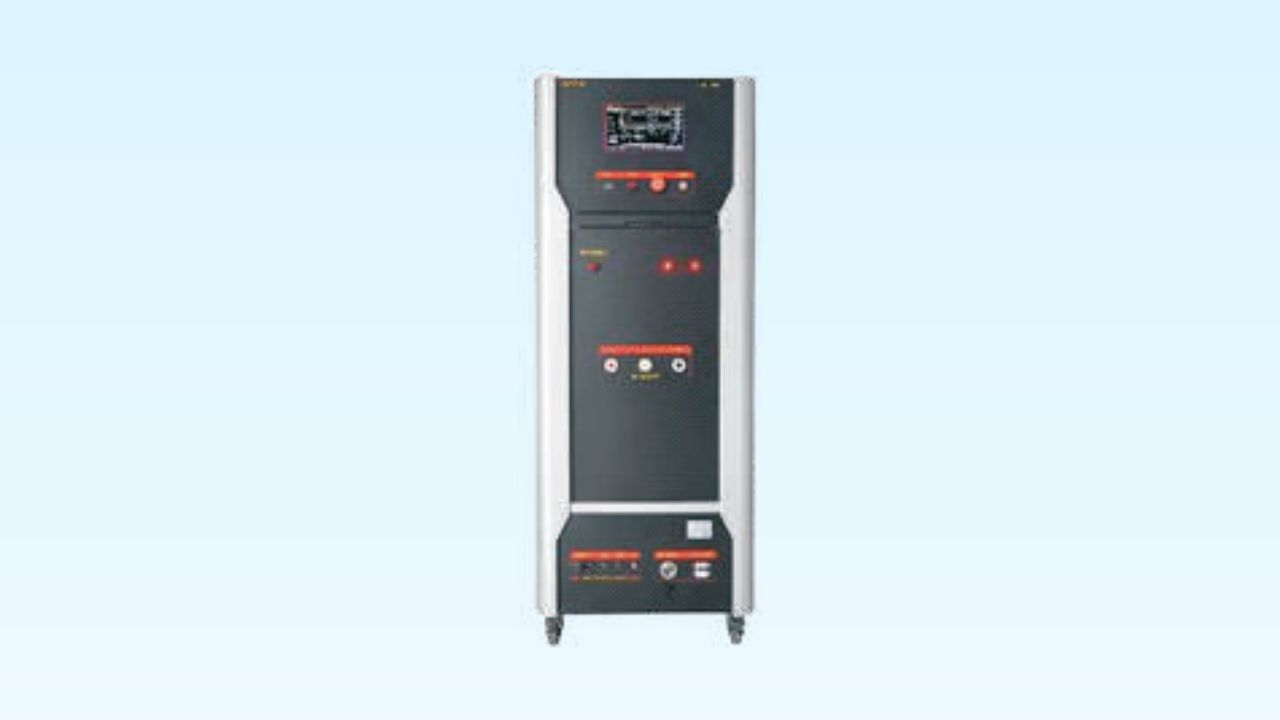

HV Surge Simulator
Maximum test voltage: 20000V with 100V resolution.
10.1-inch color touch screen with positive/negative polarity conversion.
Surge test with rise time of 1.2us ±30% and duration of 50us ±20%.
Built-in RJ45 interface for optional remote control; multi-channel testing support.
Compliant with IEC/EN60664, GB/T17626,5, EC61000-4-5, ITU K20, and other international standards.

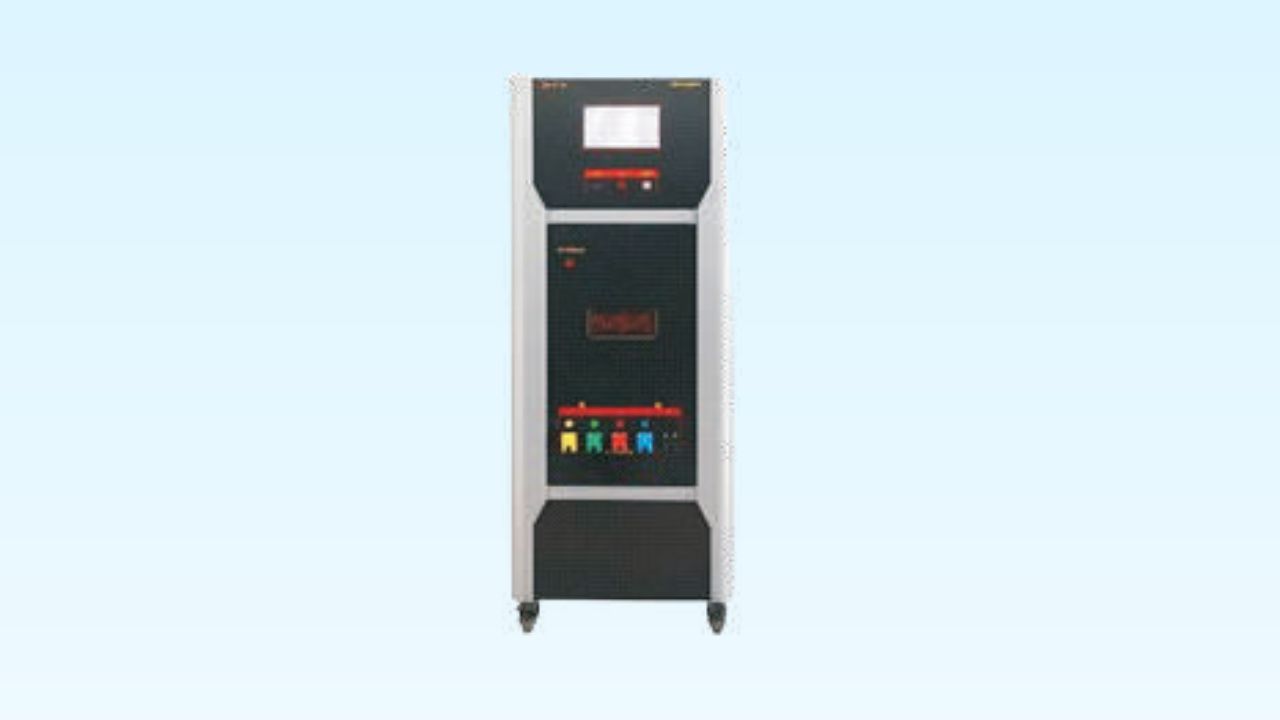

High Power Dips
EUT AC load capacity: AC 380V, 200A, three-phase five-wire.
Automatic three-phase coupling/decoupling with a 0-360° pulsa Injection phase setting.
Maximum voltage change: 100%, with a duration of 0.5 to 6000 cycles
10.1-inch color touch screen, built-in RJ45 interface, and optional remote control software.
Compliant with IEC61000-4-11/GB/T17626.11 standards.
