LCR Meters / Impedance Analyzer
LCR meters and impedance analyzers measure inductance, capacitance, resistance, and impedance with high accuracy. Adequiment’s instruments are designed for versatility and reliability in component testing.
Applications
Used in electronic component testing, material analysis, quality control, and R&D labs.
Features
- Wide frequency range for versatile testing
- High accuracy with fast measurement speed
- User-friendly interfaces with multiple measurement modes
- Compact benchtop and portable models
- Connectivity for automated testing and reporting

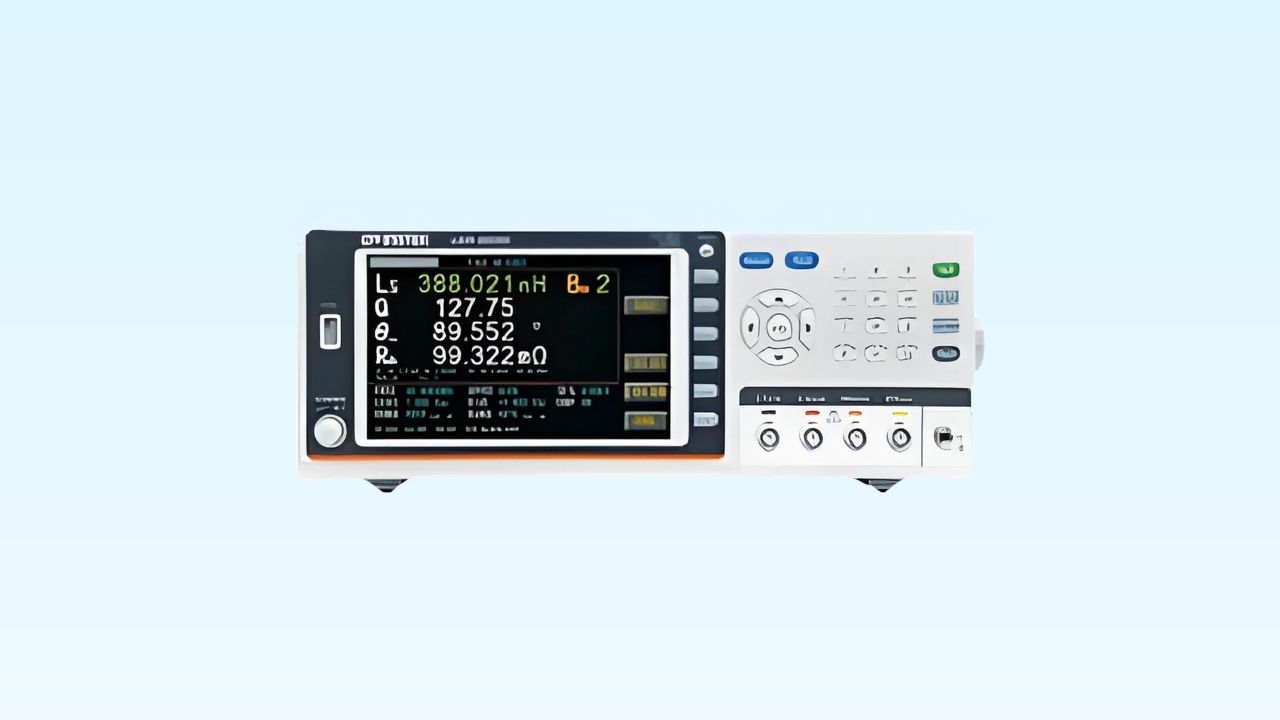

High-Frequency LCR Meter
Frequency Range: DC, 10 Hz Up to 50 MHz
Display & Accuracy: 7″ LCD color display, 0,08% basic accuracy
Measurement & Analysis: Displays 4 results simultaneously, with 15-step st measurement and equivalent circuit analysis
Interfaces & Power: RS-232C, USB, LAN, GPIS

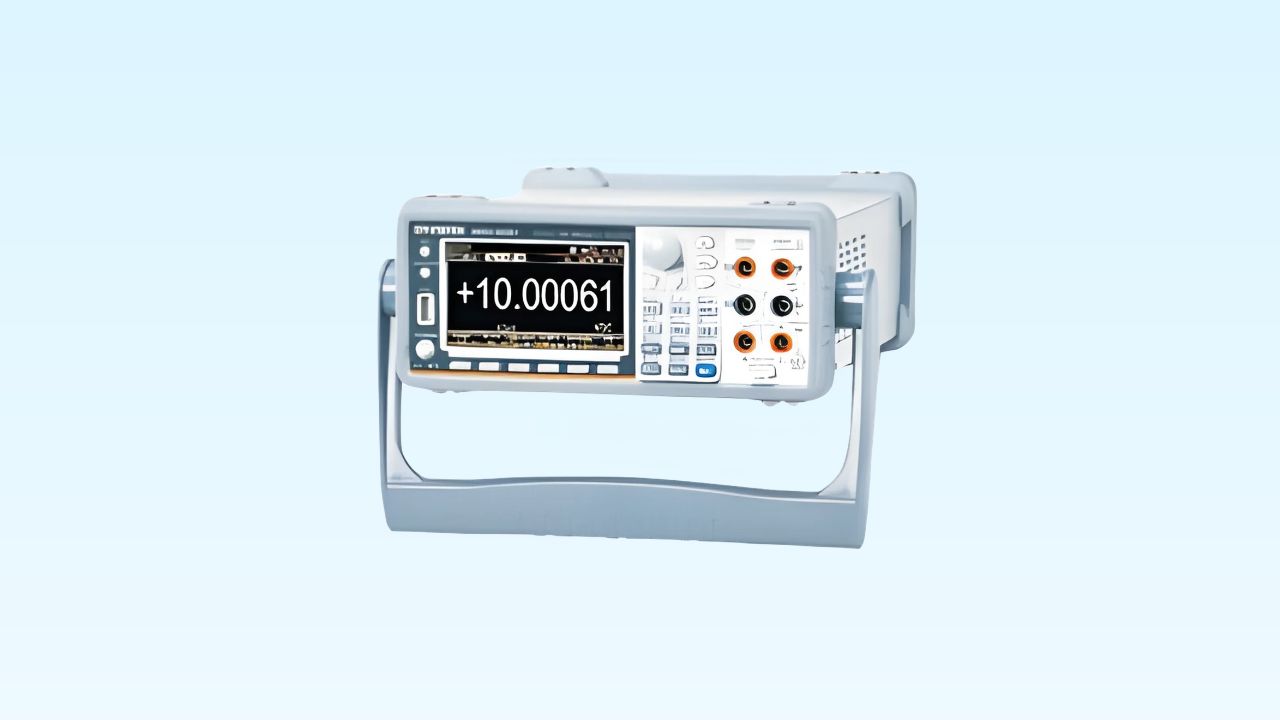

Measurement Multimeter
Display & Accuracy: 611-dipit display with 1,200,000 counts; DCV accuracy. 0.0035% (00M-0061)/0.0075% (GDM-0000)
Measurement Functions: 12 functions Induding DCV, ACV, DOI, ACE, resistance, frequency, and temperaturs
Graphical Capabilities: Supports histogram, bar meter, trend, and dual measurement display
Interfaces: USB, RS-232C, LAN, digital, Optional GB interface +10.00001

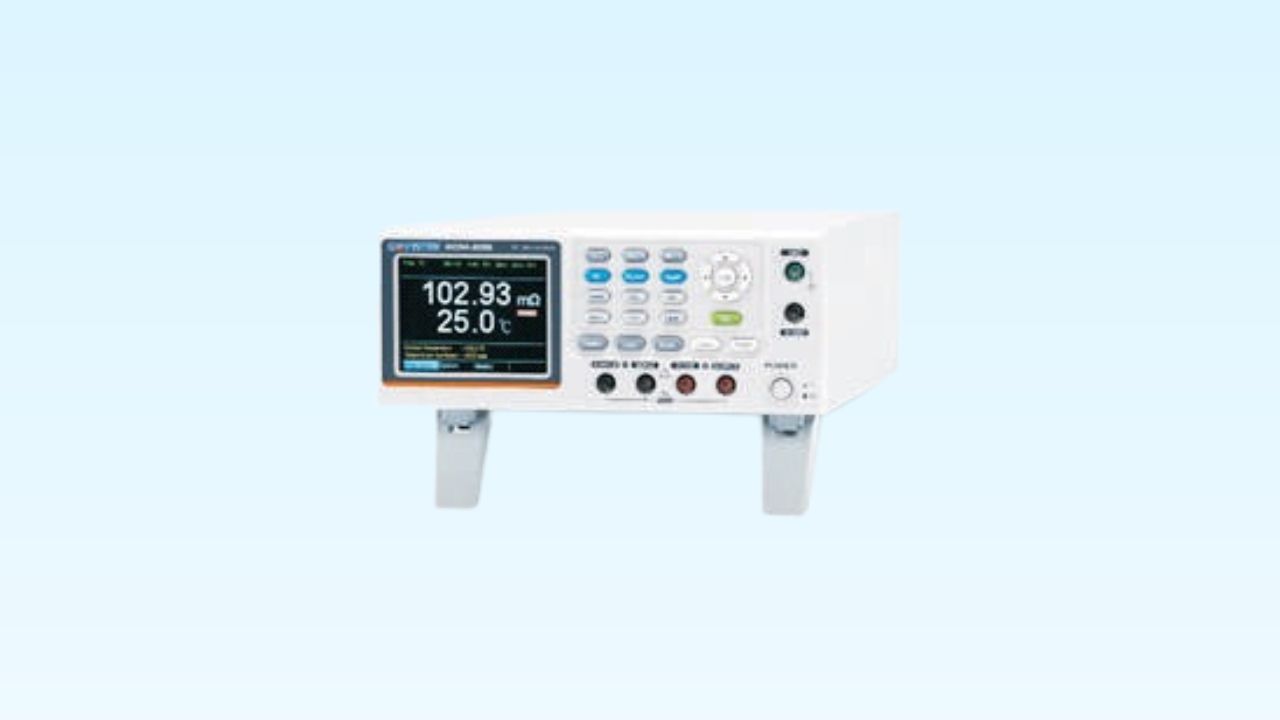

DC Milli-Ohm Meter
Display: 50,000 counts on a 3.5″ TFT LCD (320×240)
Accuracy: 0,05% precision, 00 readings per second reson
Measurement: Four-wire resistance, temperature compensation, delayed measurement, 20 memory sets
Interfaces: USB, RS-232C, GP, various drivs modes

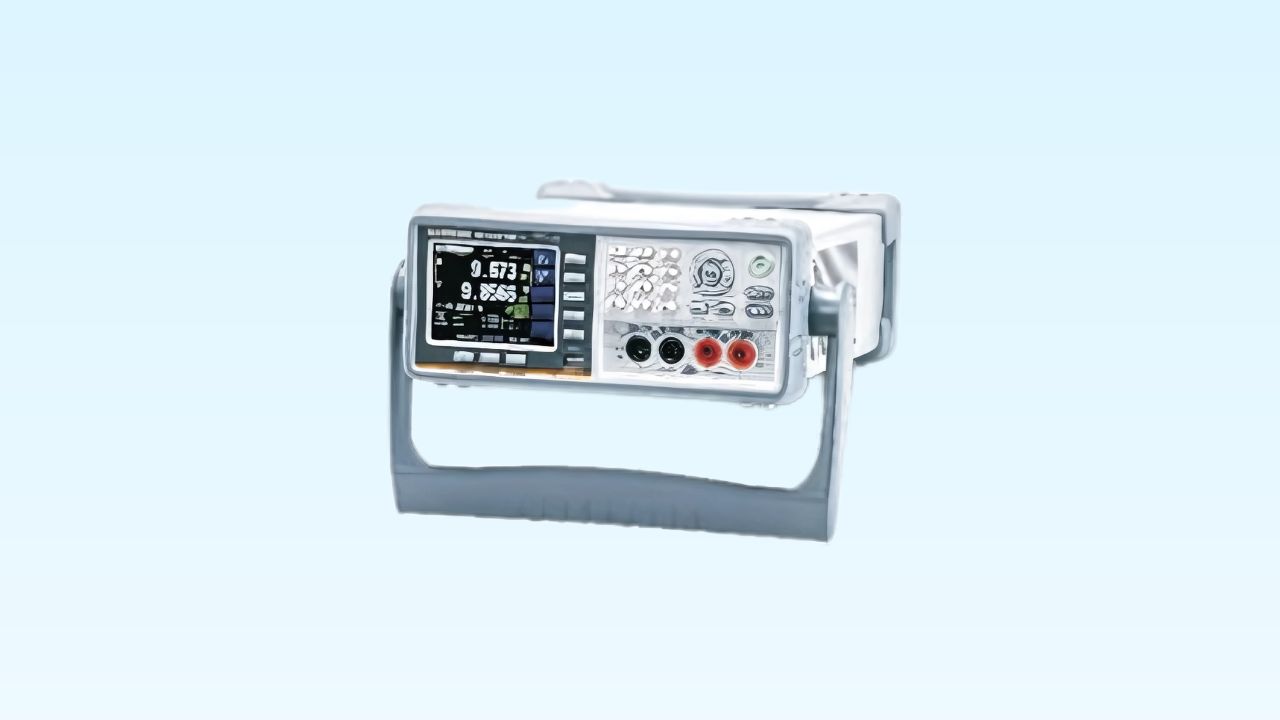

Battery Meter
Display: 2.5 TFTLCO (320×240)
Measurement : Capahit Dage p1000% 300% or 80V) AC rsistance (0m to 3.2k)
Accuracy & Resolution : Voltage accuracy 0.01% resistance accuracy 65%. ap to 6,1 μα από τον
Features : Independent GONOGO
Interfaces USB RS-2320
