Oscilloscope
Oscilloscopes are the backbone of modern electronics testing. They allow engineers and researchers to visualize electrical signals in real time, helping in accurate measurement, troubleshooting, and product validation. At Adequiment, we provide advanced oscilloscopes designed for precision, reliability, and ease of use, ensuring you capture every detail of your signal with confidence.
Applications
From R&D labs to industrial production lines, oscilloscopes are used to analyze signal waveforms, measure timing relationships, detect noise issues, and validate circuit designs. They are vital in applications like embedded system development, power electronics, automotive electronics, telecommunications, and education.
Features
- High bandwidth and sampling rates for detailed signal capture
- Intuitive interfaces with advanced triggering and analysis tools
- Portable and benchtop options for flexible usage
- Reliable memory depth for long waveform recording
- Connectivity options for seamless data transfer and reporting

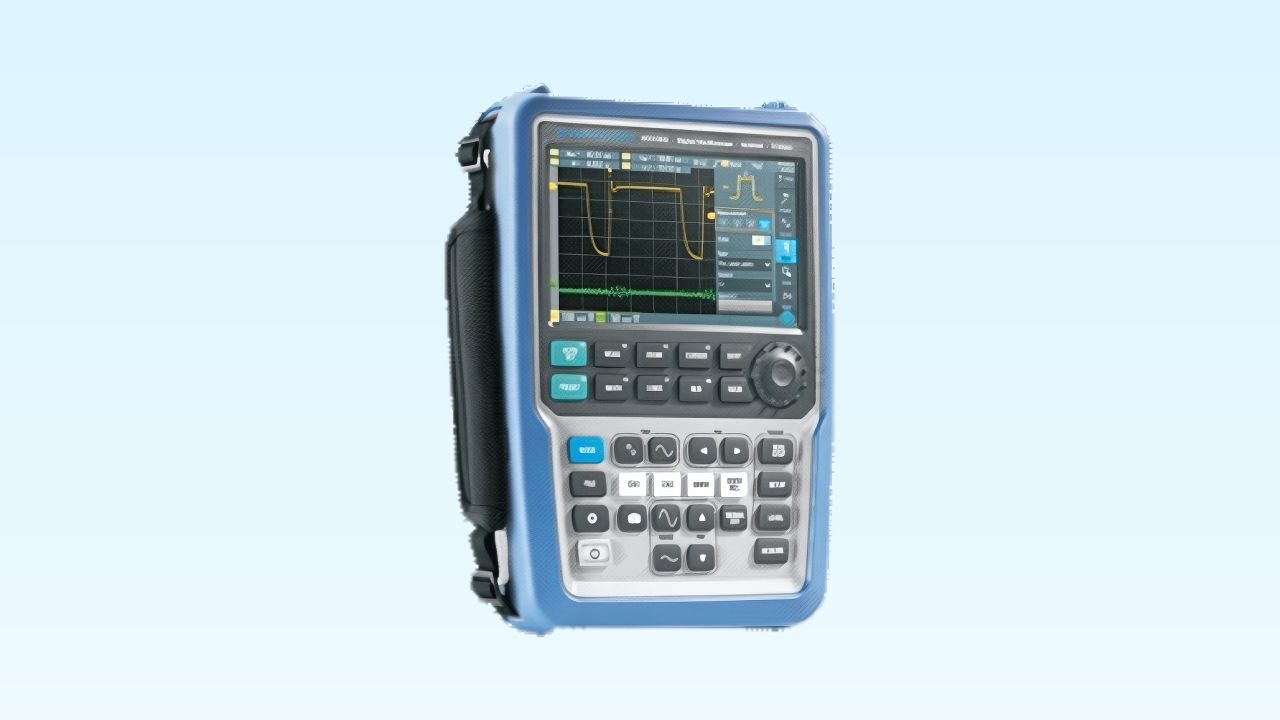

Hand Held Oscilloscope
Portable oscilloscope with disolated channels suitable for high voltage measurements.
- Bandwidth: 60 MHz to 500 MHz
- Sample Rate: up to 5 Gsample/s
- Memory Depth: 500 kpts, 50 Mpts segmented memory
- ADC Resolution: 10-bit
- Isolation: CAT IV 600 V (RMS) / CAT III 1000 V (RMS)

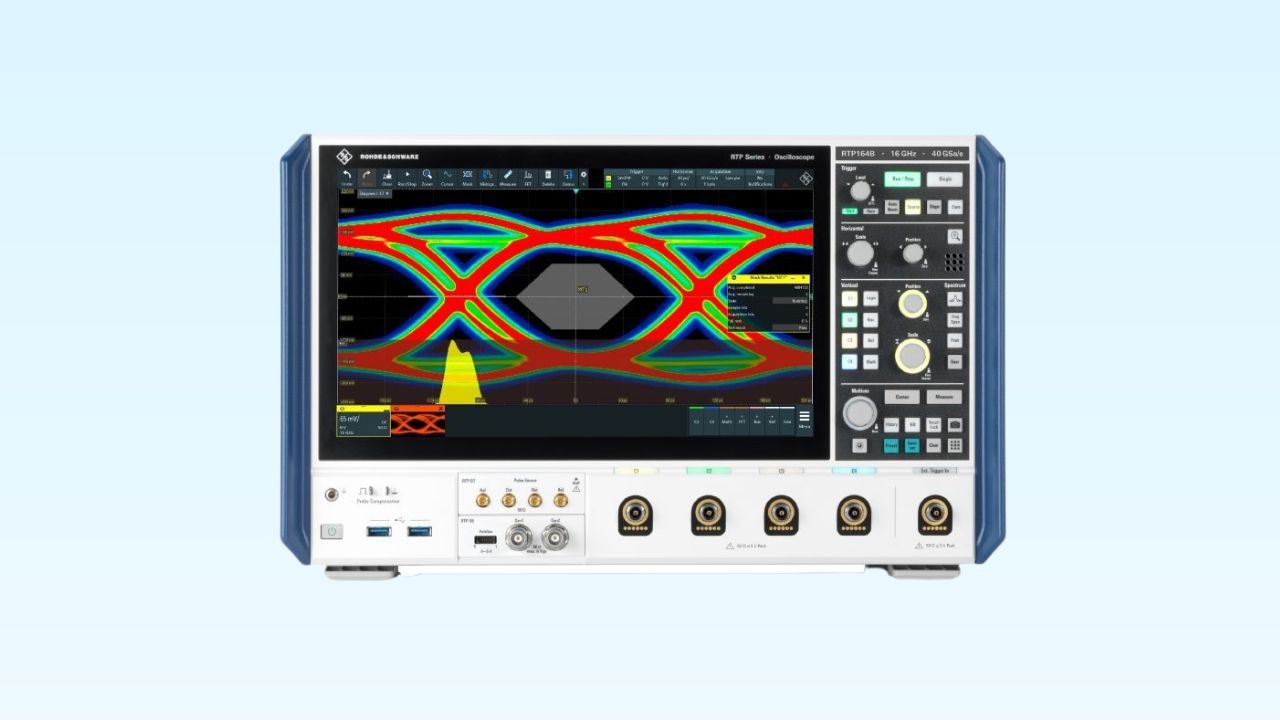

Performance Windows Based Oscilloscope
High-performance oscilloscope for advanced waveform analysis.
- Bandwidth: 4 GHz to 16 GHz
- Max Sample Rate: 40 Gsample/s
- Max Memory Depth: 3 Gpoints per channel
- Resolution: Up to 16-bit
- Trigger Events: Full bandwidth

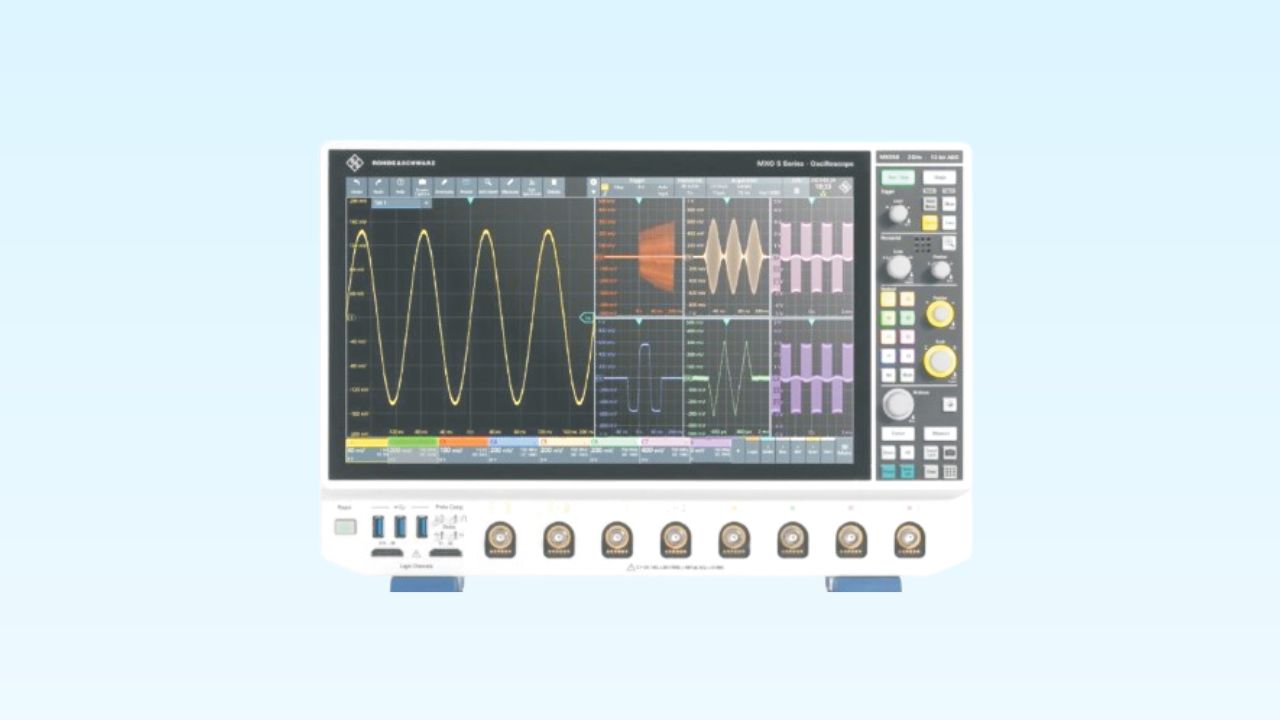

Mixed Signal Performance Oscilloscope
Oscilloscope with high update rate and deep memory for mixed-signal applications.
- Bandwidth: 350 MHz – 2 GHz
- Channels: 4 or 8
- Update Rate: > 4.5 million wims/s
- Memory Depth: 500 Mpoints
- Resolution: 18-bit vertical resolution

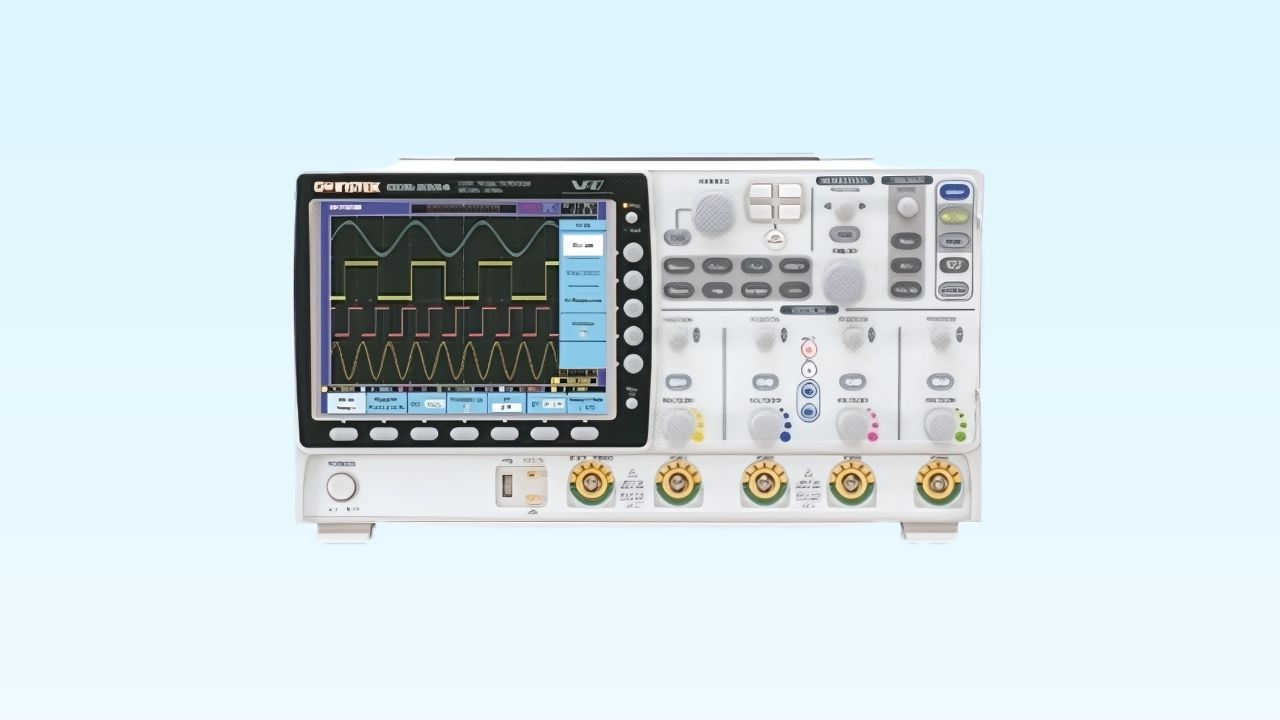

Cost Effective Oscilloscope
Affordable oscilloscope with essential functionality for basic analysis.
- Bandwidth: 150-500 MHz
- Channels: 2 or 4
- Sample Rate: 5GSa/s RT
- Display: 8-inch 800×600
- Special Features: Split Screen Function, VPO Technology
