Other Accessories
AD Equipment offers a complete range of accessories that enhance the performance and flexibility of your test and measurement systems.
Applications
Includes probes, connectors, adapters, cables, and fixtures that are essential across all test environments to ensure accuracy and ease of use.
Features
- High-quality and durable construction
- Compatible with a wide range of instruments
- Designed for safe and precise operation
- Available in multiple configurations
- Essential for complete test setups

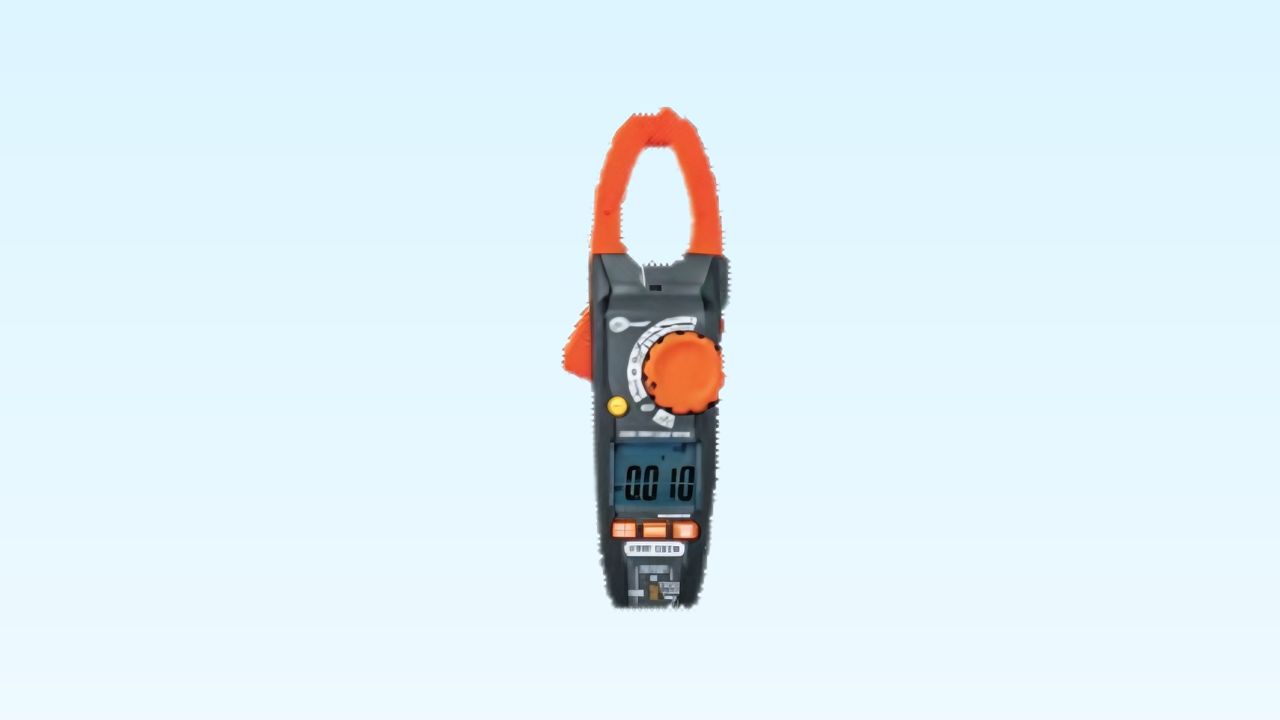

Clamp meter
Current & Voltage Measurement: Ideal for use downstream of Inverters or VFD systems.
INRUSH Function: Captures the initial surge of current when a device powers on.
Clamp Capacity: Measures conductors up to 35 mm in diameter with current up to 1000 A AC/DC.
LoZ Function: Eliminates interference and induced voltages for accurate readings.

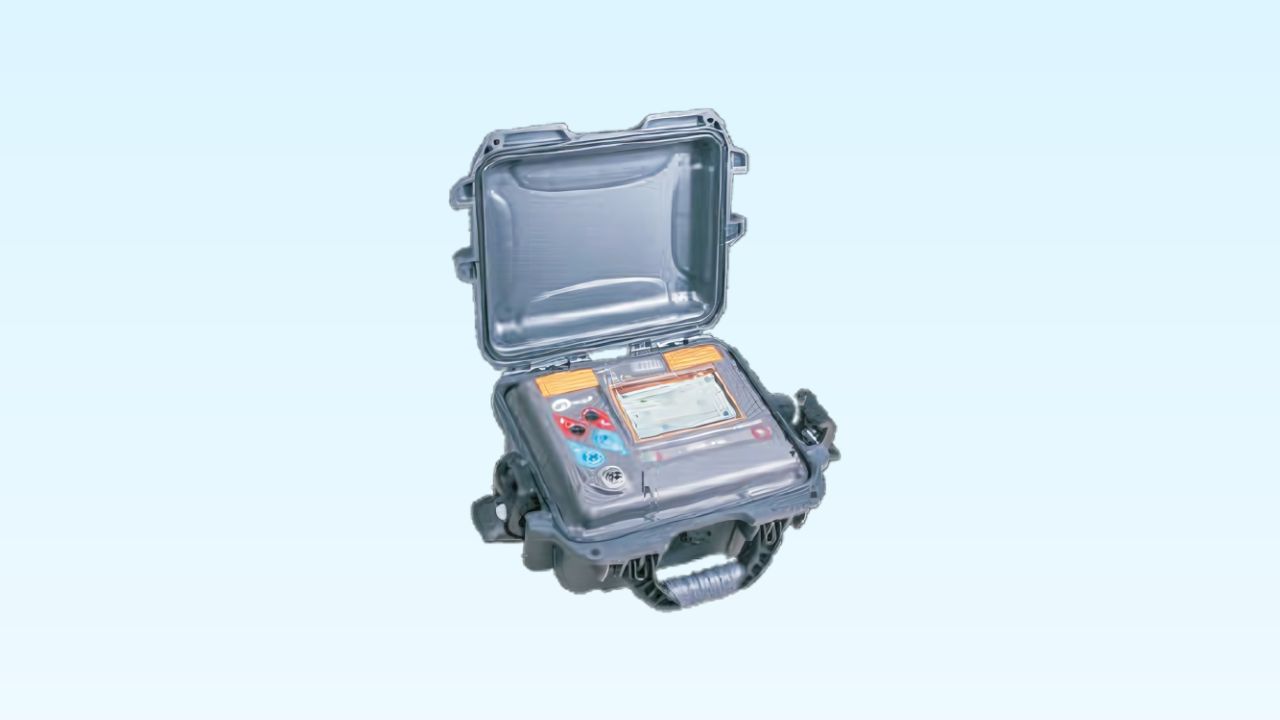

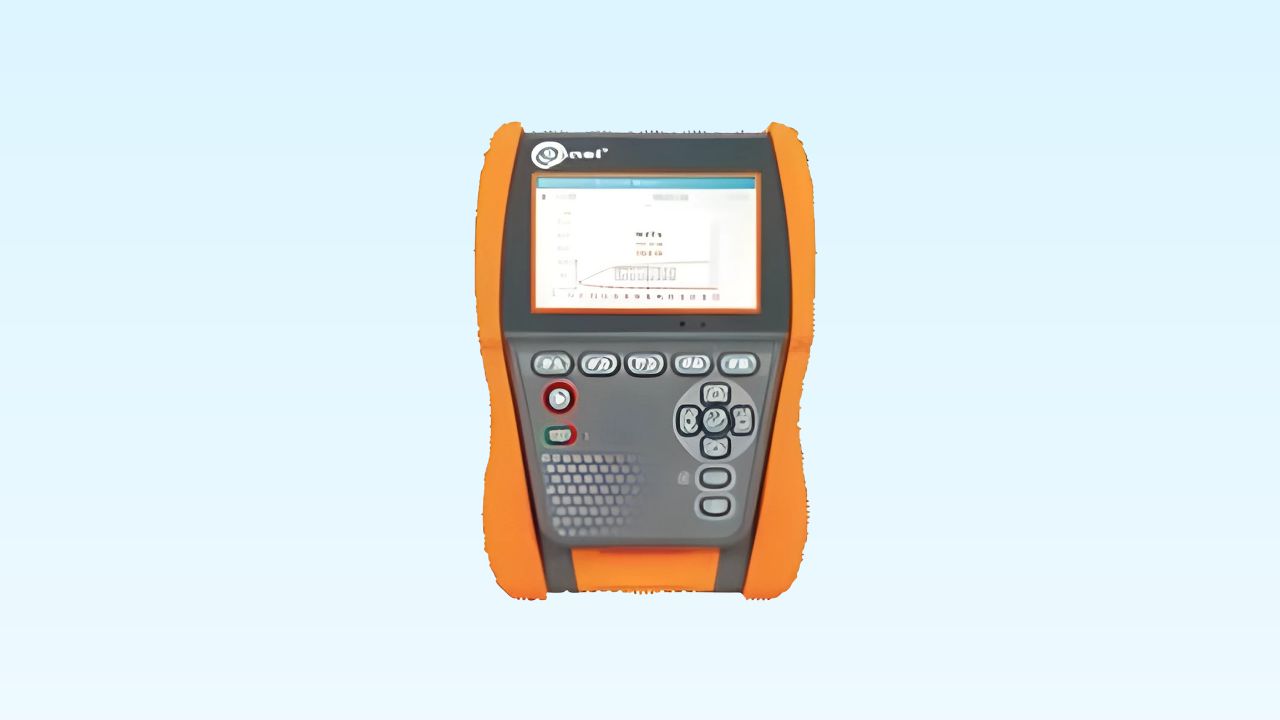

Insulation resistance meter
Voltage Range: 10V to 2500V, selectable in 10V steps.
Comprehensive Testing: Includes surge protection devices and dielectric discharge (DD) tests.
Advanced Measurement: Step voltage, RampTest, and low-voltage continuity with 200 mA current.
Data Handling: 9999-entry memory, USB data transmission, and automatic capacitance discharge.
Battery tester
Internal Impedance Measurement: Evaluates battery health.
AC/DC Current: Up to 400 A.
AC/DC Voltage: Up to 500 V.
Ripple Voltage Measurement: Detects issues like cell damage.
Industry Versatility: Suitable for automotive, electrical, renewable energy, and telecommunications applications.

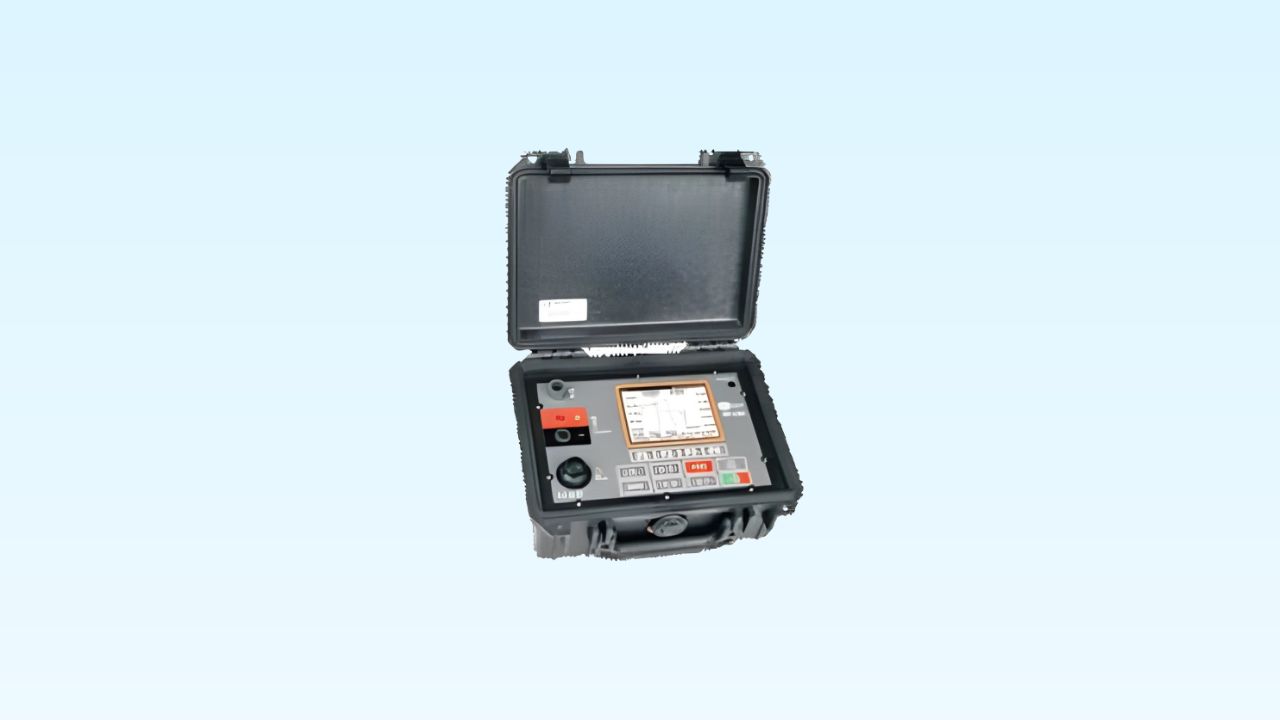

Winding and low resistance meter
High Current: Measures resistive objects up to 200 A; inductive objects up to 10 A.
Precision: Basic uncertainty of 0.25%.
Display: 5-inch color touch screen, 800×480 resolution.
Connectivity: Wi-Fi, USB, LAN, supports printer and 2D barcode reader

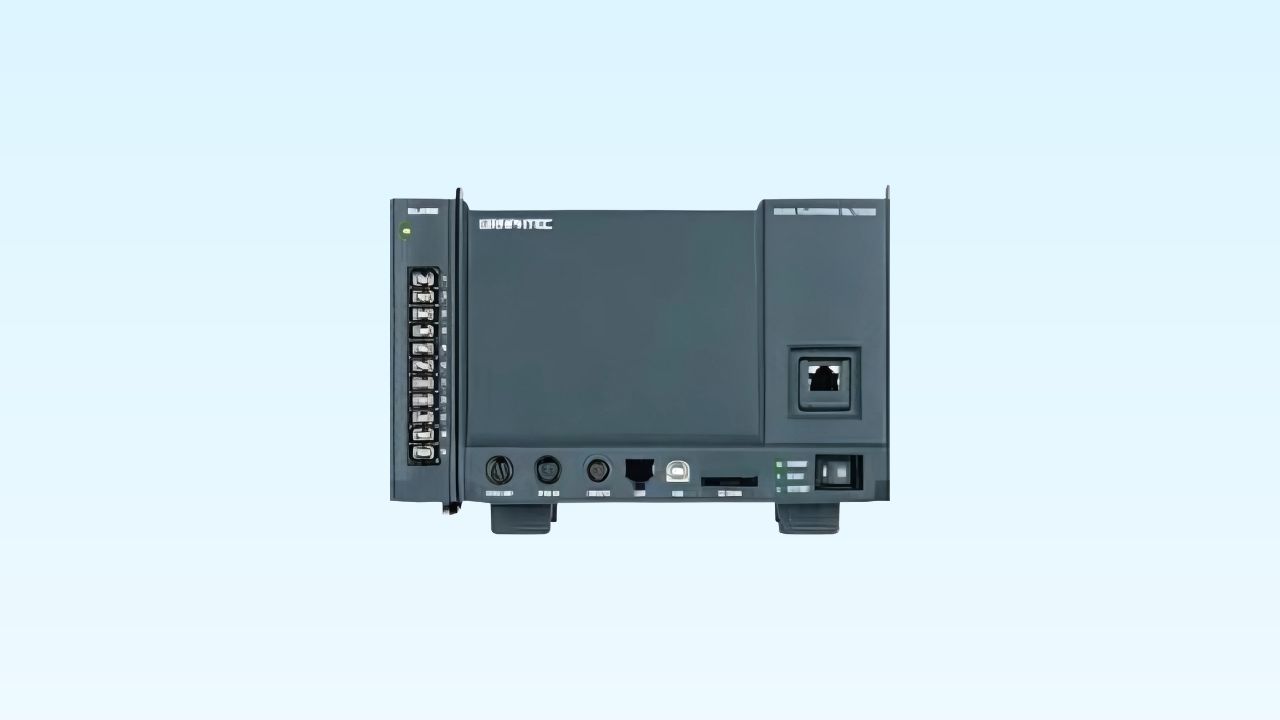

Data Logger
1MS/s Sampling: Ideal for fast-changing signals.
Versatile Modules: Supports up to 112 channels.
Standalone Operation: Quick setup with touch display.
Dual Sampling: Records long-term and transient data,
Oscilloscope Accessory, Racks

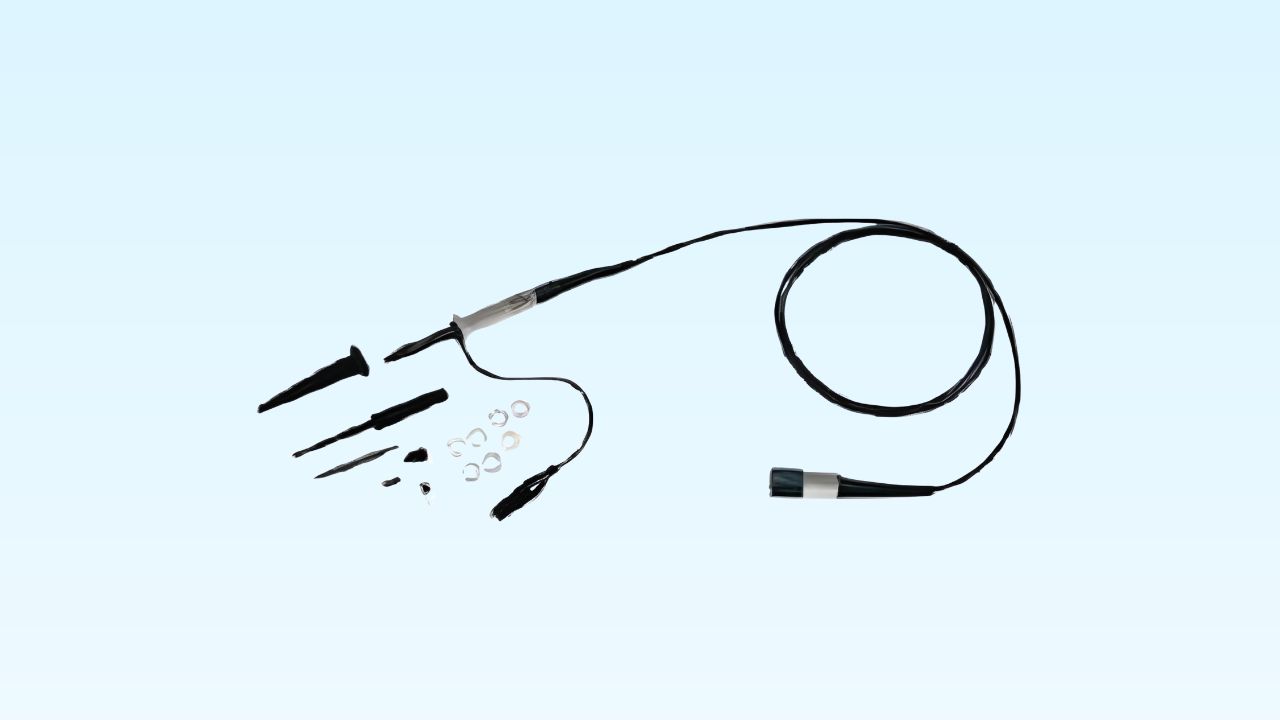

Oscilloscope Probes: GTP Series (35MHz to 500MHz) for various bandwidth needs.
Current Probes: GCP Series (DC-1MHz, 70A to 200A) for measuring current.
Logic Analyzer: DS2-08LA and DS2-16LA for advanced logic analysis.
Differential Probes: GDP Series (25MHz to 100MHz) for high voltage differential measurements.
Software: DS3-PWR for power analysis and DS3-SBD for serial bus analysis.
Adapters and Cables: Includes GPIB, LAN, and power adapters for connectivity and expansion.

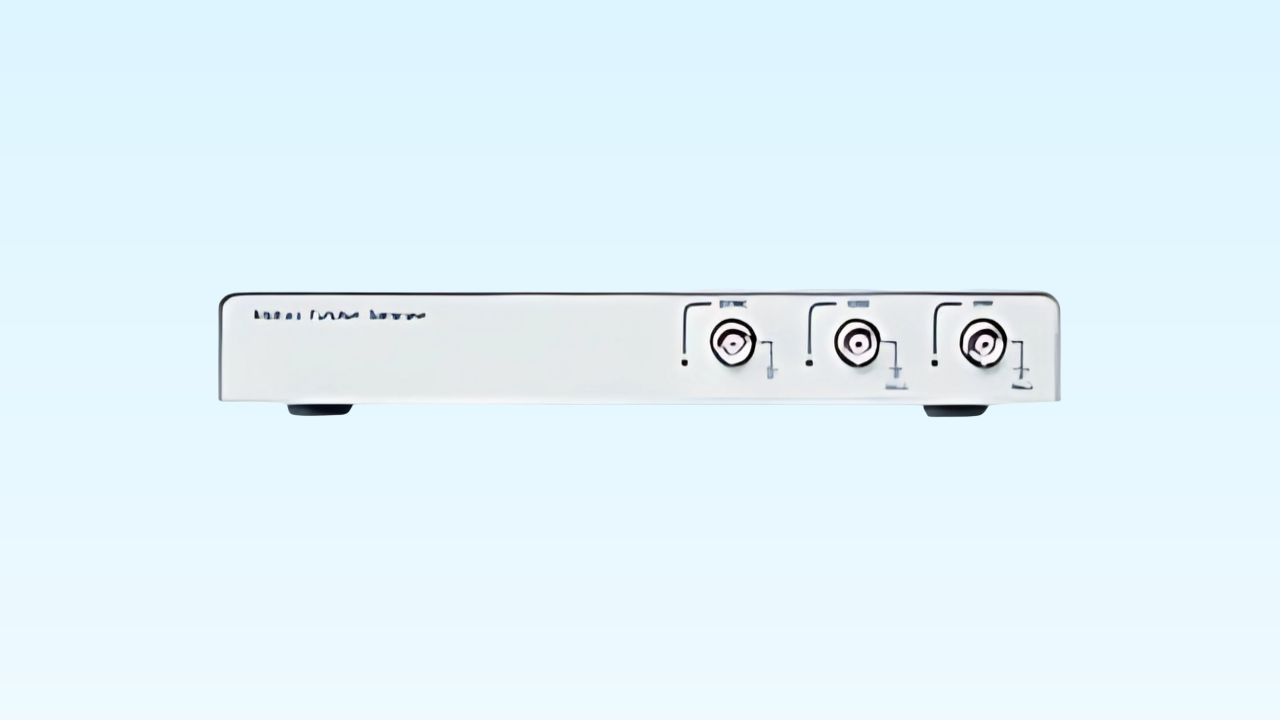

Function Generator Accessory, Racks
Adapters: ADP-003 (502 N-J/F to SMA-J/F), GPA-501 (5V/2A), and GPA-502 (Universal 5V/2A) for power and signal connections.
Extension Modules: DS2-FH1 for module expansion and connectivity.
Racks: GRA-432 Rack Adapter Kit for AFG-3000 Series.
Leads and Cables: Includes GTL Series test leads, ground leads, BNC, RS-232C, USB, and GPIB cables for various connections.
Special Applications: GTL-201A (Ground Lead) and GTL-303 (RF Cable) for specific applications.
Spectrum Analyzer Accessory, Racks

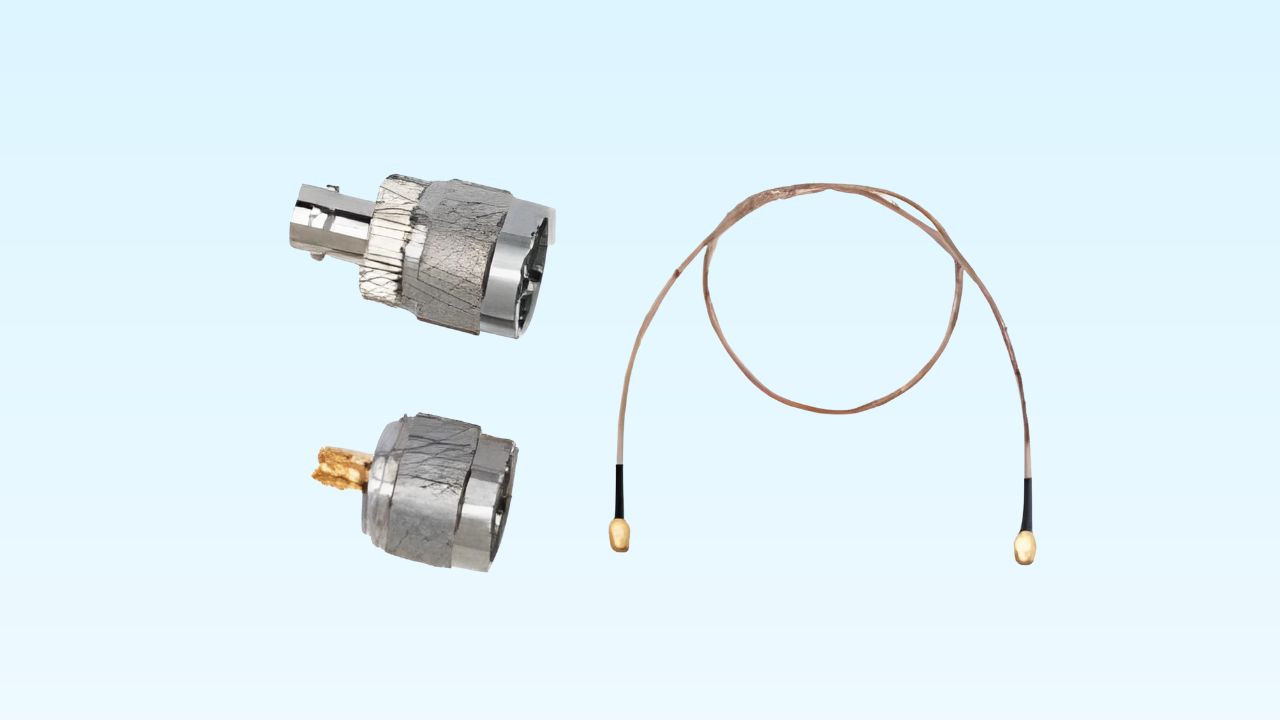

Adaptors: ADP-001 (BNC to N), ADP-002 (SMA to N), ADP-101 (750 BNC to 500 BNC), ATN-100 (10dB Attenuator), GAK-001 (Termination), GAK-002 (Cap with Chain).
Communication Cables: GTL-246 (USB A-B), GTL-248 (GPIB, 2000mm), GTL-250 (GPIB, 600mm).
General Leads: GTL-110 (BNC), GTL-301/302 (RF Cable), GTL-303/304 (RF Cable).
Racks: GRA-415 (19″, 6U Size).
EMI Applications: ADB-002 (DC Block), ADB-006 (DC Block), ADB-008 (DC Block), GKT-008 (EMI Probe Kit), GLN-5040A (LISN), GIT-5060 (Isolated Transformer), GPL-5010 (Transient Limiter).
Special Applications: ATA-001 (FM Antenna), GBK Series (Experiment Textbooks). GKT Series (Kit Sets).
Power & Load Accessory, Racks

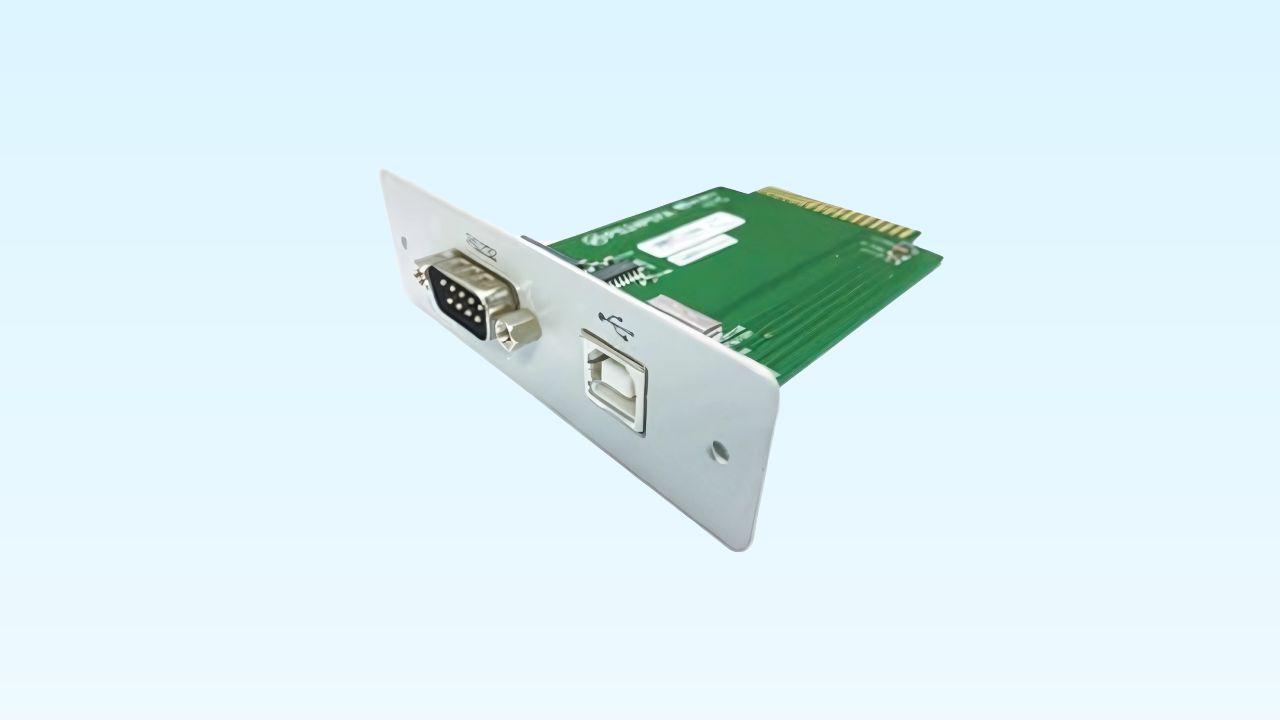

Interface Cards: APS Series (600Vrms Voltage, Frequency, RS-232/USB), GET Series (Extended Terminalls), GPS-001 (Protection Knob).
Power Cords: GPW Series (UL/CSA, VDE, PSE).
Racks: GRA Series (19″, 2U/3U/4U, EIA/JIS, various models).
Special Applications: GRJ Series (Module Cables), GTL Series (Test Leads), PSU Series (Parallel/Series Cables), PSU-01A/02A/03A (Vertical Joiners).
Communication Cables: GTL Series (RS-232C, USB), PSU Series (RS232/RS485).
Adapters: GUG-001 (GPIB-USB Adaptor).
T & M Accessory, Racks

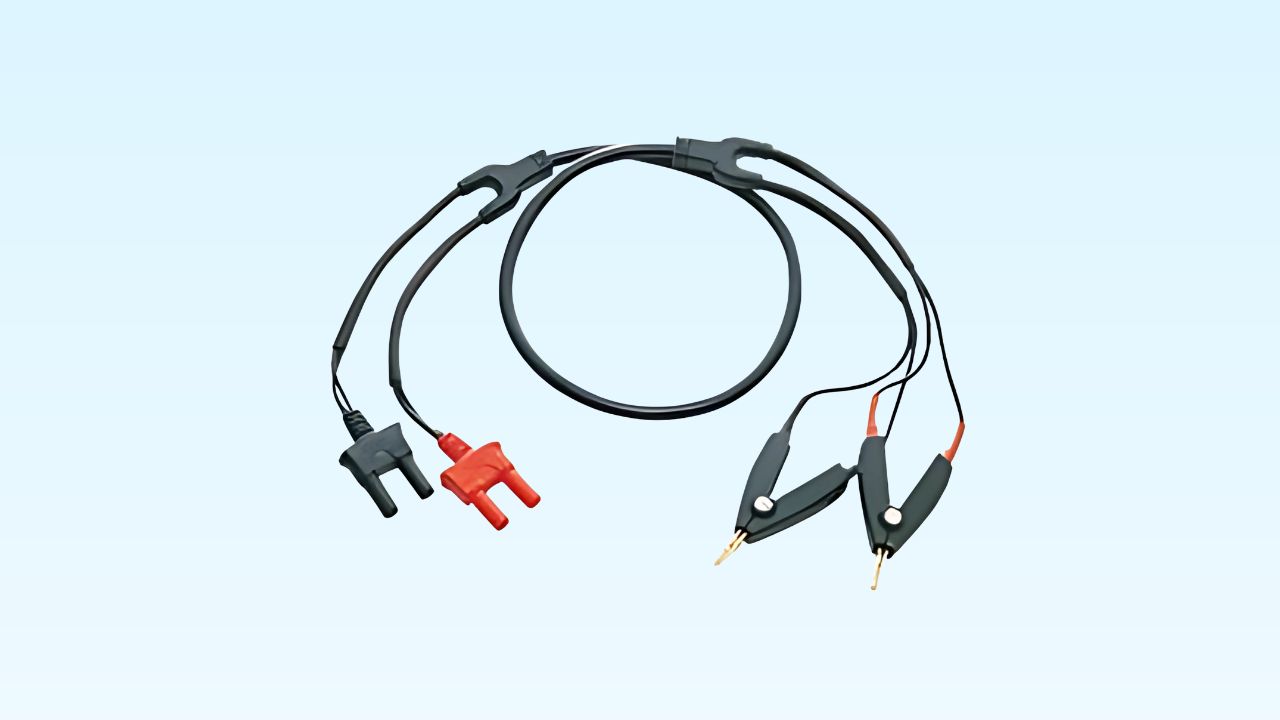

General Leads: Includes GBM-01/02/03 for various test probes and GDM-TL1 for DMMs. High voltage leads like GHT-114 and test leads such as GTL-101.
Special Applications: Features short bars (GBM-S1), scanner cards (GDM-SC1A), high voltage adapters (GHT-117/118), and universal test fixtures (GPM-001).
Interface Cards: Includes GDM-82G1/L1 for GPIB/LAN connections and GPT-10KG1/KL1 for GPIB/LAN connections in different models.
Racks: Options includ GRA-404/417 for 19″ 4U/2U racks and other models for specific series.
LCR Fixtures: Includes fixtures for axial/radial components (LCR-05/05A), and SMD components (LCR-08A/15A).
