Power Analyzer / Meter
Power analysers and meters provide accurate measurements of voltage, current, power, and efficiency, helping industries optimise energy usage and validate their performance.
Applications
Used in R&D, power electronics, industrial automation, and renewable energy systems to measure energy losses, optimize devices, and ensure compliance.
Features
- Multi-channel inputs for versatile testing
- Wide measurement range with high accuracy
- Real-time data logging and analysis
- User-friendly interface with report generation
- Compact portable and benchtop designs

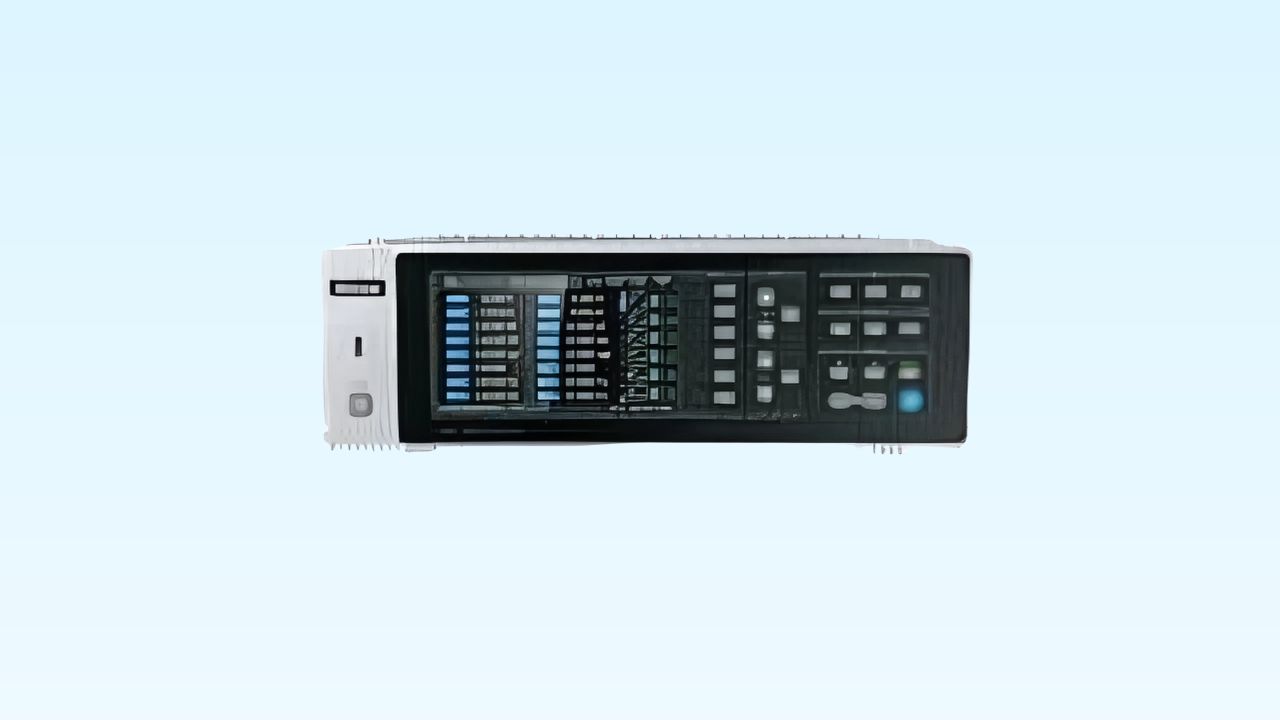

Multiple Channel Power Analyzer
Six-Channel Synchronous Measurement: Supports configurations like single-phase, three-phase, and four-phase for various loads.
High Accuracy: 0,1% basic accuracy with 16-bit high-speed AD conversion, handling AC/DC signals across 0.5Hz to 100kHz bandwidth
Wide Power Range: Measures up to 20A per channel, with options for 50A/10A/5A/2A/1A, and a resolution as low as 0,1mW,
Comprehensive Harmonic Analysis: Up to the 50th harmonic with real-time visual display.
Versatile Applications: Suitable for power analysis in PV inverters, electric vehicles, transformers, lighting, and more.
This analyzer is optimized for precise and efficient power analysis across various Industrial and consumer applications.
Multi-channel High Precision Power Analyzer
High Accuracy: 0.03% of reading +0.05% of range.
Wide Bandwidth: DC to 1MHz measurement bandwidth.
High Voltage Capability: Maximum voltage up to 1,500V DC.
Flexible Current Measurement: Supports 50A/30A (standard) with BNC Interface and optional sensors.
User-Friendly Interface: Ful touch screen with customizable display and multiple waveform options.
Data Management: Customizable storage with CSV export and on-device screenshot saving.
Compact Design: Standard 4U height for easy system integration,

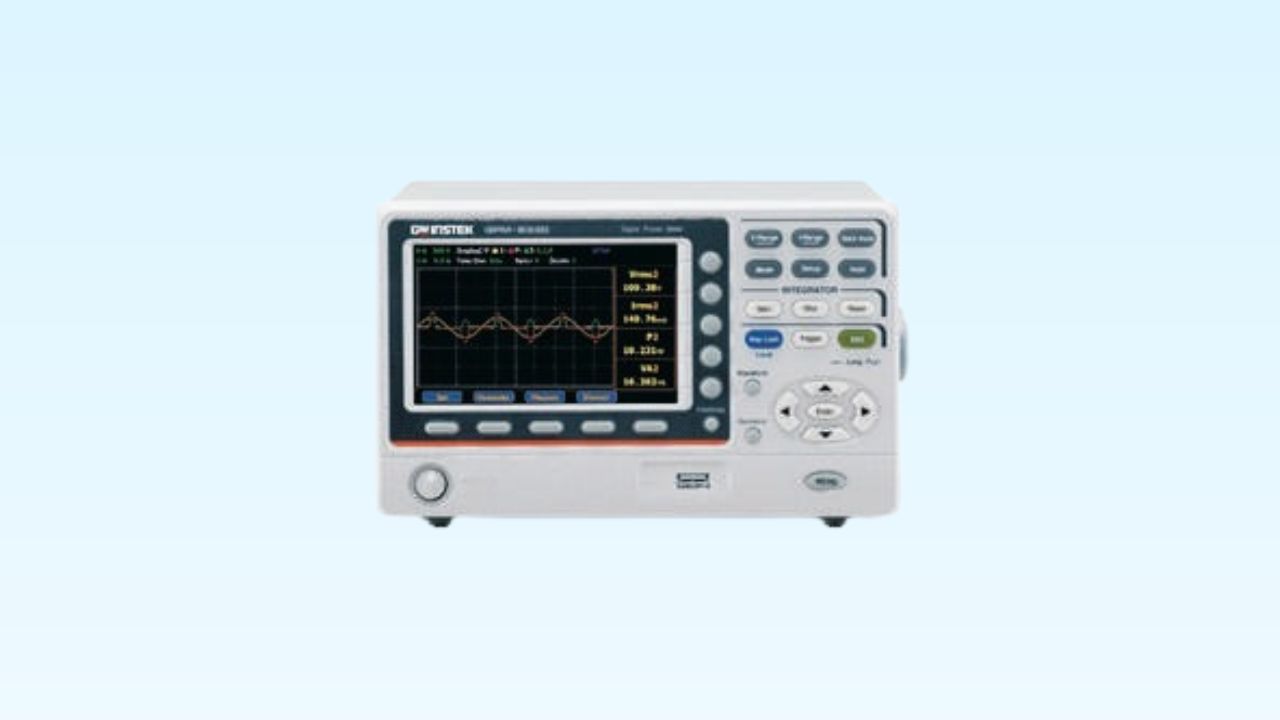

Digital Power Meter
High Accuracy & Bandwidth: Vokage/Current test frequency from DC to 100kHz.
Waveform Display: Voltage, current, and wattage waveforms.
Harmonic Analysis: Measures up to 50 orders, compliant with IEC 61000-4-7.
Current/Voltage Measurement: Supports CF-3 for lul range and CF-6 for hall range.
Interfaces: RS-232C, USB, LAN, optional GPB+Digital/0
User-Friendly: 5″ TFT LCD, screen capture via USB, auto-ranging in integration mode, external current sensor input.
